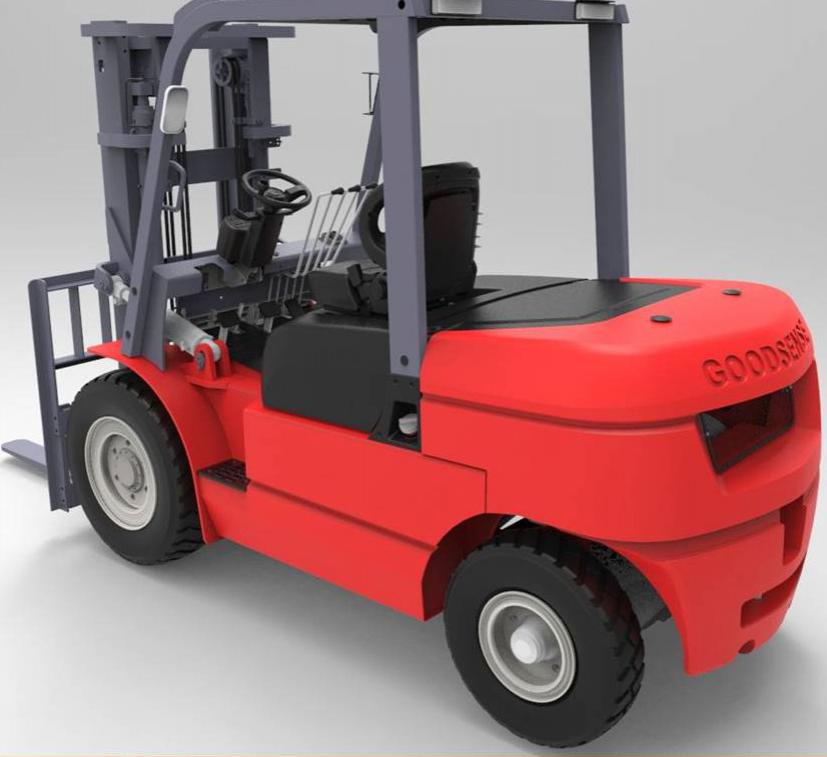

4.0-5.0t Diesel Forklifts/LPG Forklift is suited to heavy-duty applications.
GOODSENSE 4.0-5.0t Diesel Forklifts/LPG Forklifts are equipped with a wide range of engines, air intake and exhaust systems, nonstandard overhead guards and cabins.
Details

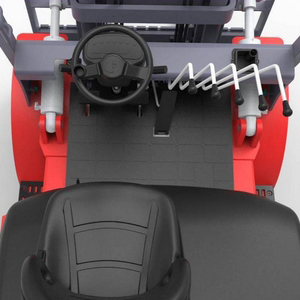

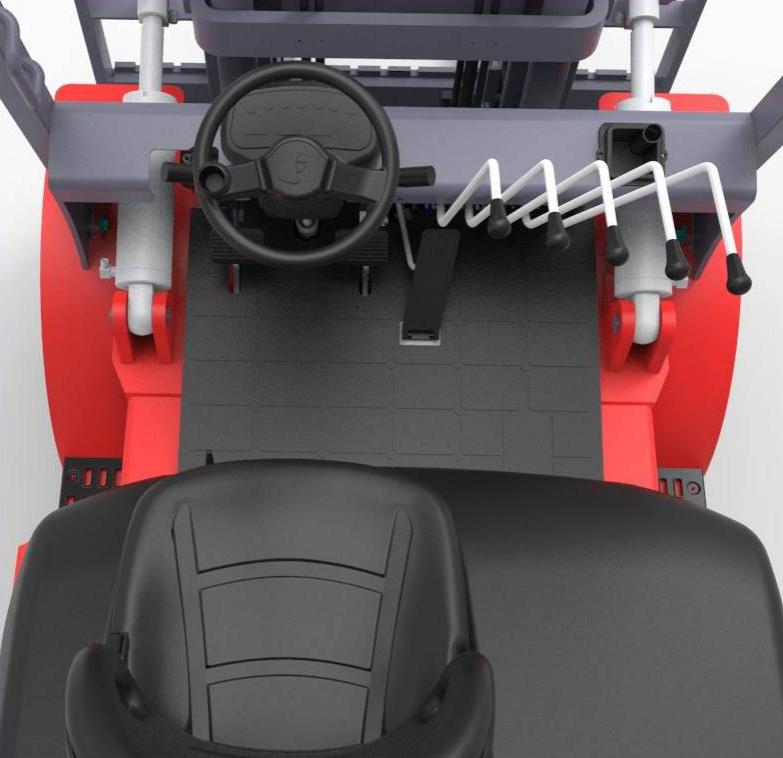

Right-hand hydraulic control handle that has 5 mast functions, LCD instrument, non-skip pedal and storage box bring more convenience for operators.

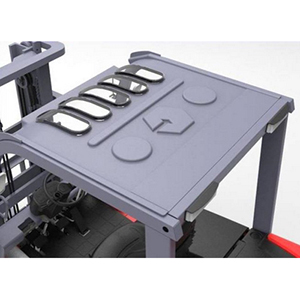

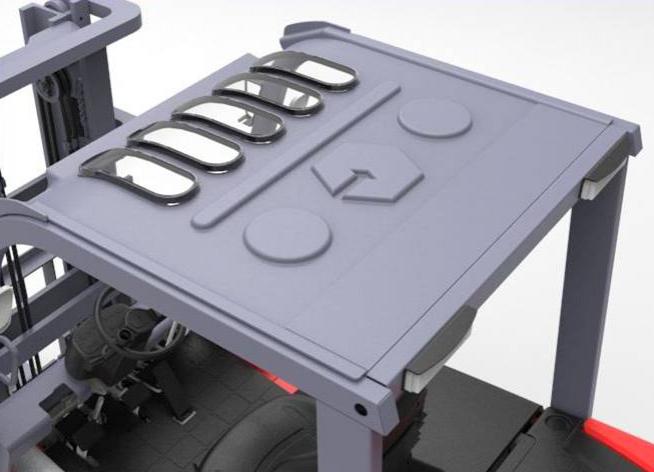

Overhead guard made by high strength steel sheet provides a safety net for drivers and keeps them from bad weather conditions.

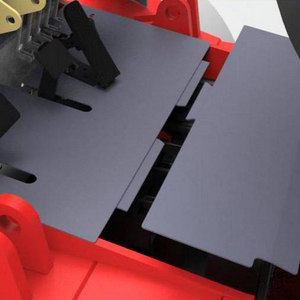

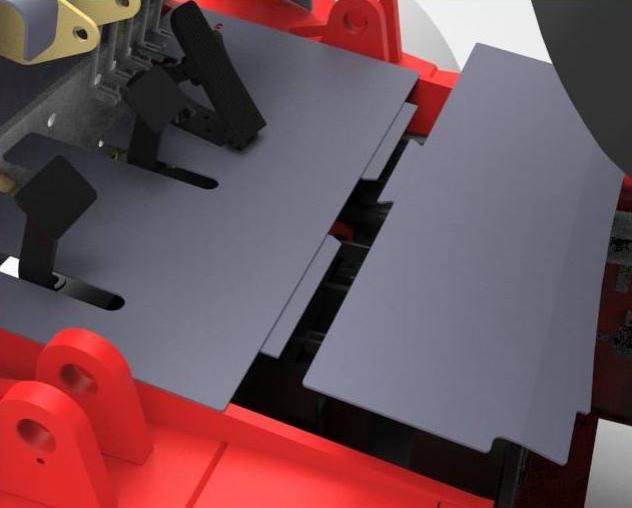

Seperatable embedded pedal allows for easy repairment and debugging.

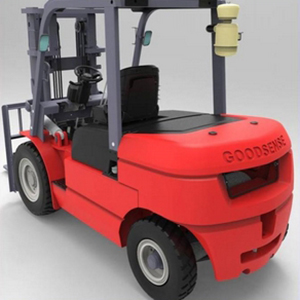

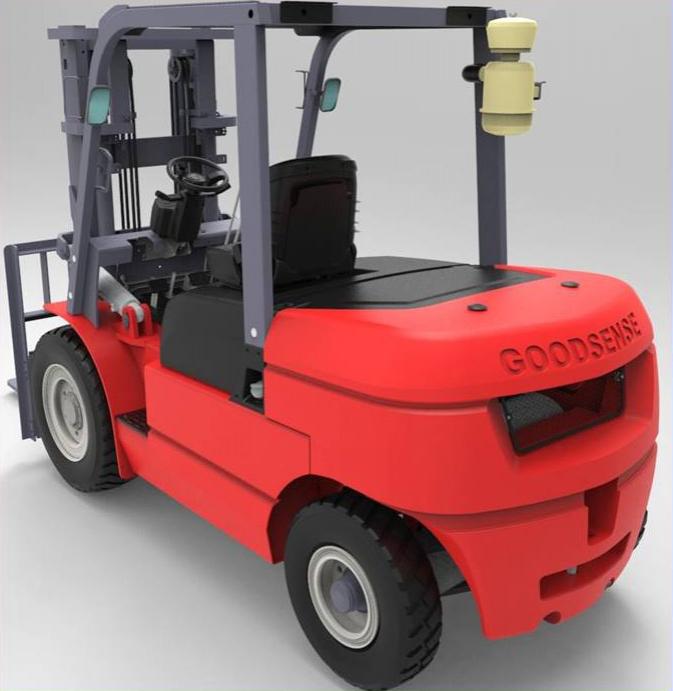

Front Window Overhead Guard gurantees visibility in rainy days. Our overhead guard with two air filters keeps cabin clean, reduce contaminants in air intake system and increase durability.

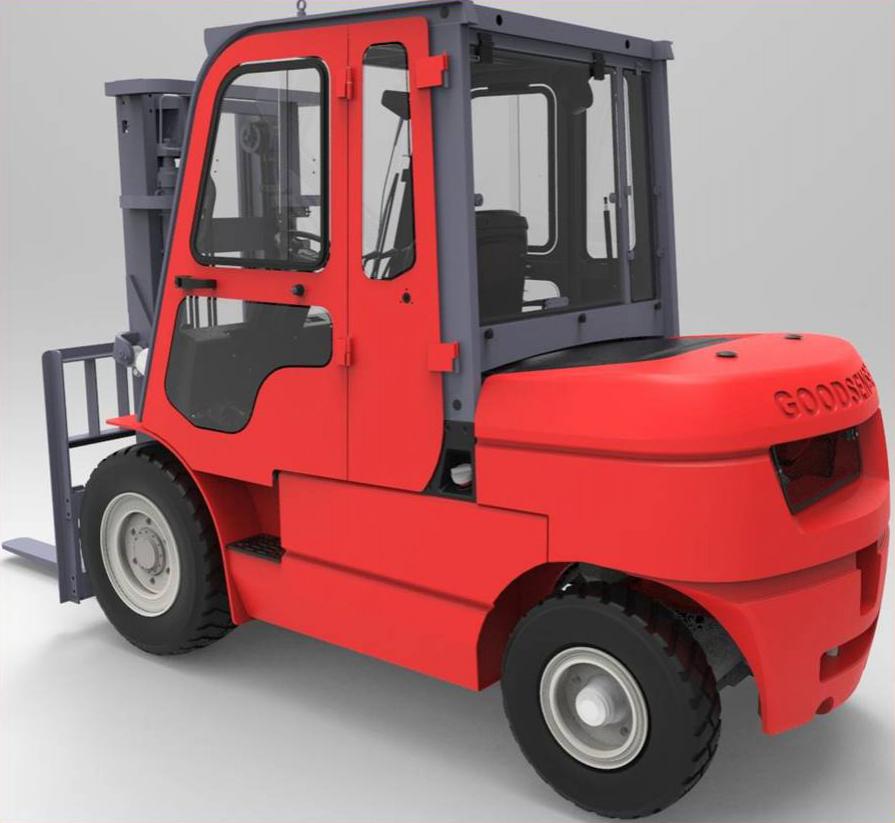

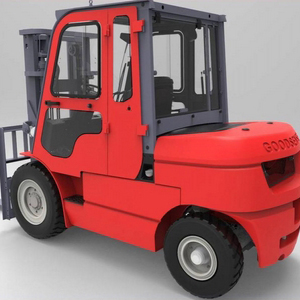

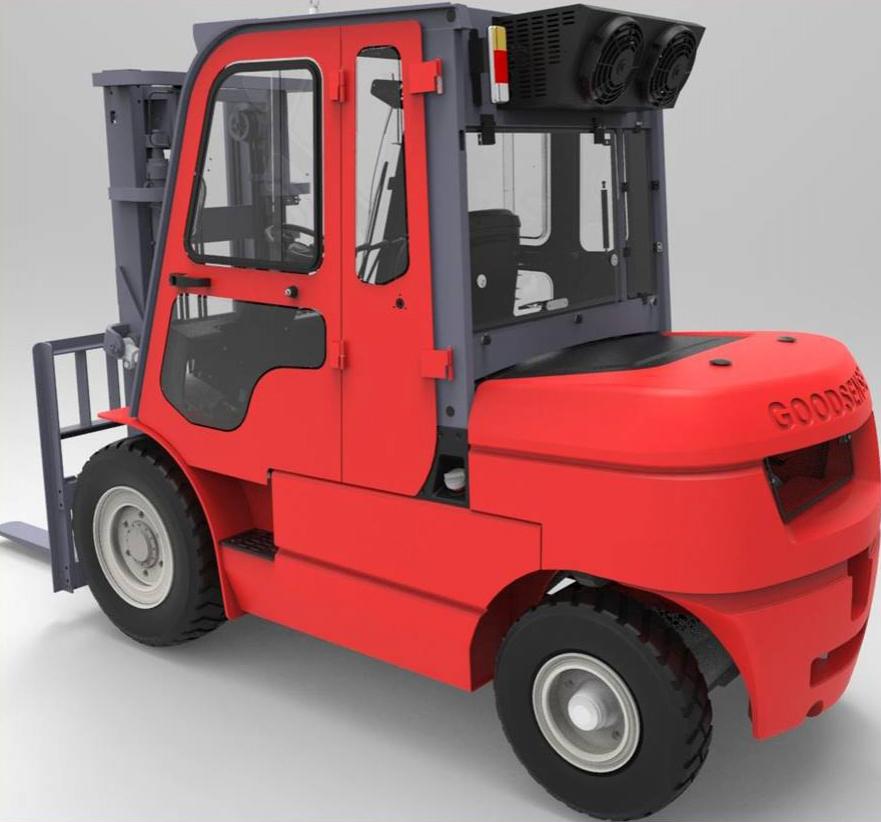

Closed cabins with fan heater can help to prevent coldness and wide glass application increases visibility, bringing more safety.

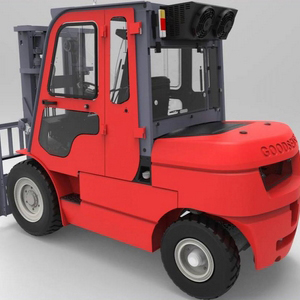

Cabin is also equipped with air conditioning.

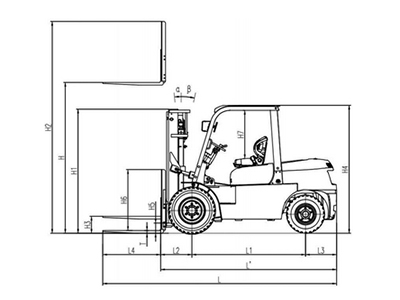

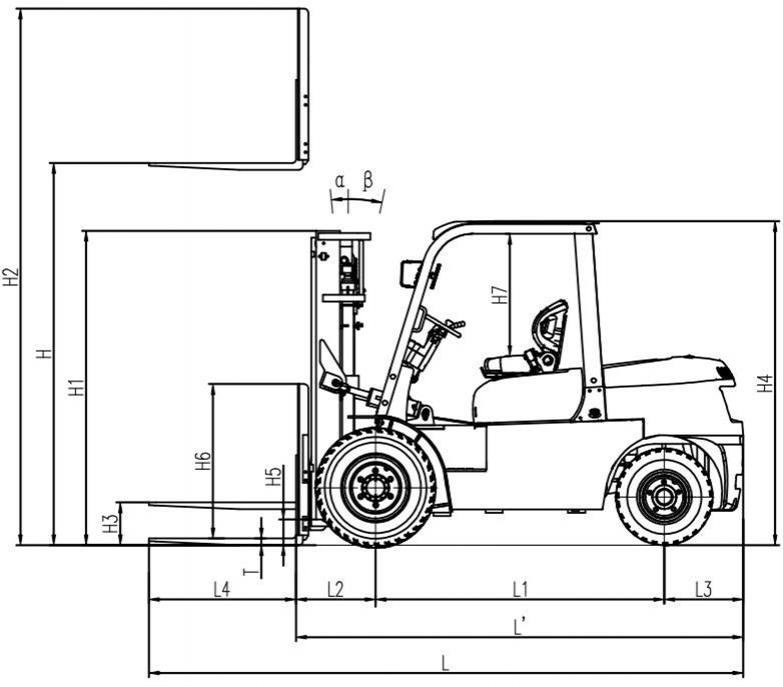

Contour
Technical Parameters
Model
FD40G-XC3
FD45G-XC3
FD50X-XC3
General
Power Type
Diesel
Load Capacity
kg
4000
4500
5000
Load Centre
mm
500
Service Weight
kg
6480
6680
6980
Chassis
Tyre type
Pneumatic Tire
Number of wheels front/rear(x = driven wheels)
2X/2
Front Tyre
300-15-18PR
Rear Tyre
7.00-12-12PR
Track width, front
mm
1180
Track width, rear
1190
Wheelbase
2100
Dimension
Lift Height
3000
Fork Size
L×W×T
1070×150×55
Mast Tilt Angle
F/R
6/12
Mast Lowered Height
mm
2330
Mast Extended Height(with backrest)
4165
Width over forks(outside)
300-1380
Length to face of fork(Without fork/With fork)
3260/4330
Overall Width
1460
Overhead Guard Height
2340
Assist Grip Height
1000
Front Overhang
579
Min. Turning Radius
2910
Ground Clearance（Bottom of mast）
150
Min. Aisle width
2920

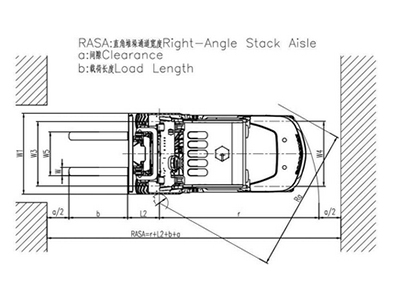

Min. Stacking Aisle width
4740
Performance
Max. Travel Speed(Full load/Empty load)
km/h
22/25
Max. Lifting Speed(Full load/Empty load)
mm/s
450/500
440/500
430/500
Max. Lowering Speed（Full load/Empty load）
≤600/≥300
Max. Gradeability(Full load)
%
20
Additional Data
Battery (Voltage/Capacity)
V/Ah
2×12/80
Fuel Tank Capacity
L
130
Transmission System
Type
Mechanical /Hydraulic
Gears：D/R
2/2Manual Transmission/ 2/1Powershifting
Operating Pressure for Hydraulic System
Mpa
17.5
