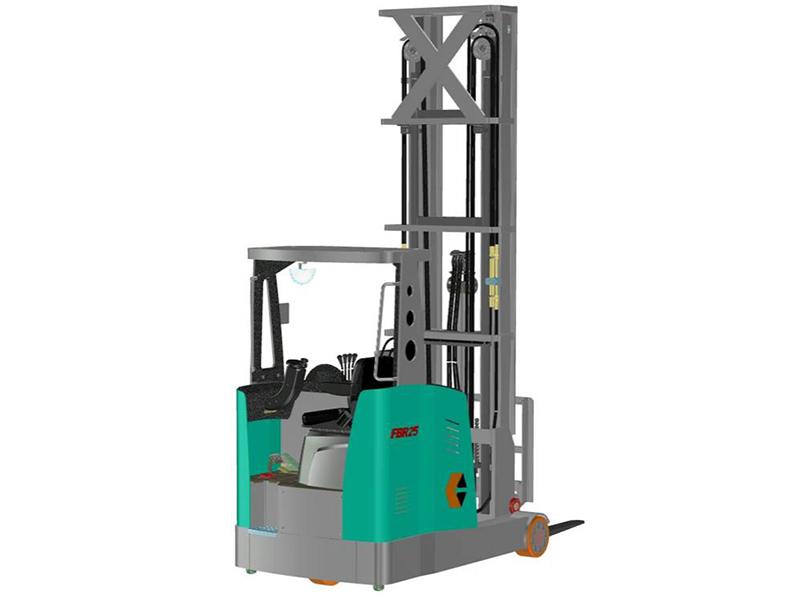

Sit Down Reach Truck

Sit down reach truck is easy to operate, with adjustable armrest and belt for protecting its driver. Compared to stand up reach truck, sit down reach truck has better gradeability, capable of carrying heavier loads in tougher conditions.

Technical Parameters

Model				FBR15/1800	FBR20	FBR25
General	Power Type			Battery
	Load Capacity		kg	1500/1800	2000	2500
	Load Centre		mm	500	500	500
	Service Weight		kg	2700/2850	3100	4450
Chassis	Tyre			PU	PU	PU
	Number of wheels front/rear(x = driven wheels)			2/1X	2/1X	2/1X
	Front Tyre			267x135	285x135	285x135
	Rear Tyre			310x120	343x140	343x140
	Track width, front		mm	1113	1185	1185
	Track width, rear
	Wheelbase L1			1585.5	1585.5	1585.5
	Reach Distance O			600	600	600
Dimension	Lift Height H			3000-8000	3000-8000	8000
	Fork Size	L4×W×T		1070×120×35	1070×120×40	1070×120×40
	Mast Tilt Angle	Fα/Rβ		3/5	3/5	2/4
	Mast Lowered Height H1		mm	2080(2236S450)	2080	3790(S800)
	Mast Extended Height(with backrest) H2			4032	4032	9072
	Width over forks(outside) W5			240-800	240-800	240-800
	Length to face of fork(Without fork/With fork) L			2095	2095/3206	2095/3206
	Overall Width W2			1260	1260	1320
	Overhead Guard Height H4			2157	2157	2157
	Assist Grip Height H7			1025	1025	1025
	Overhead Guard Height H4			250	280	280
	Min. Turning Radius Ra			1860	1880	1880
	Ground Clearance（Bottom of mast） H5			80	80	80
	Min. Stacking Aisle width for Pallets 1000X1000RASA			2680	2830	2080
	Min. Stacking Aisle width for Pallets 1200X1200RASA			2880	3030	2180
Performance	Max. Travel Speed(Full load/Empty load)		km/h	8/10	8/10	8.5/9
	Max. Lifting Speed(Full load/Empty load)		mm/s	310/400	280/300	220/280
	Max. Lowering Speed（Full load/Empty load）			≤430/≥320	≤450/≥320	≤500/≥320
	Max. Gradeability(Full load)		%	12	12	10
Power	Battery (voltage/capacity)		V/Ah	48/375	48/400	48/400
	Battery Size	L×W×T	mm	1000×400×600	1000×400×600	1000×400×600
	Engine power	Travel(Drive motor)	Kw	5	5	5
		Lifting(Lift motor)		11	11	11
	Type of drive control			AC
