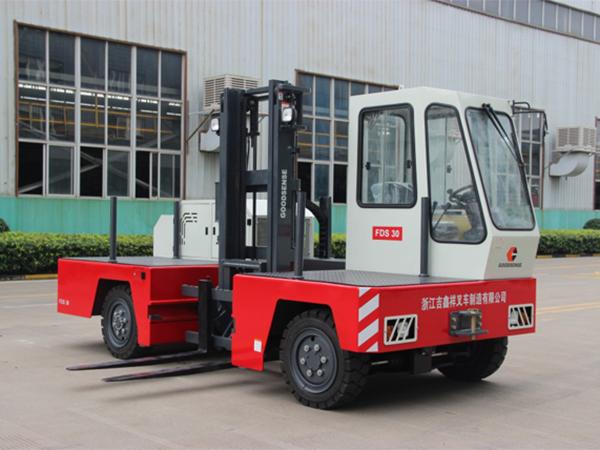

Diesel Sideloader has more power than electric sideloader, suitable for opearating in more complex terrain.
Details

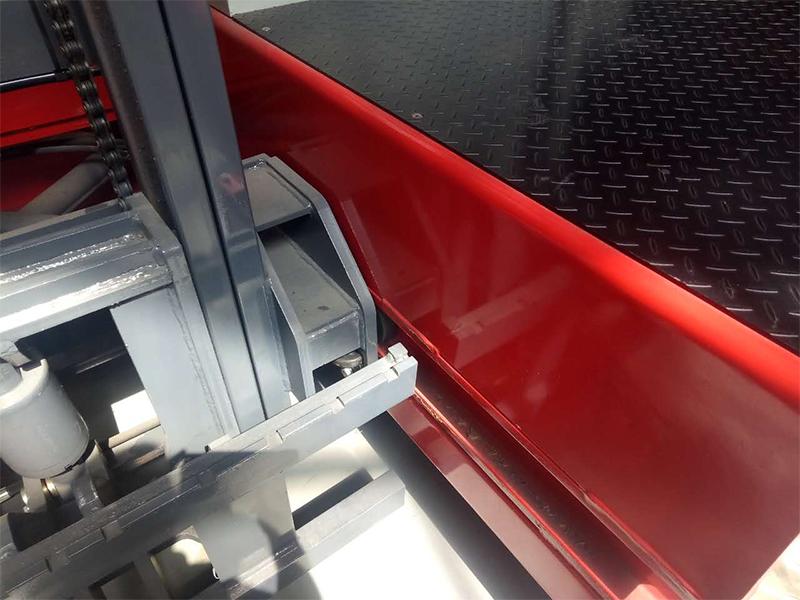

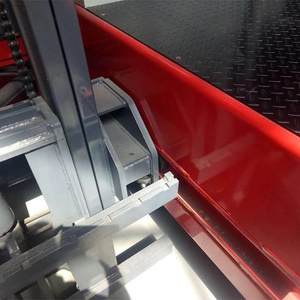

Mast roller allows for smooth movement.

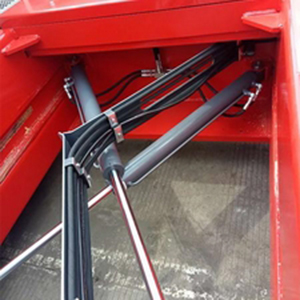

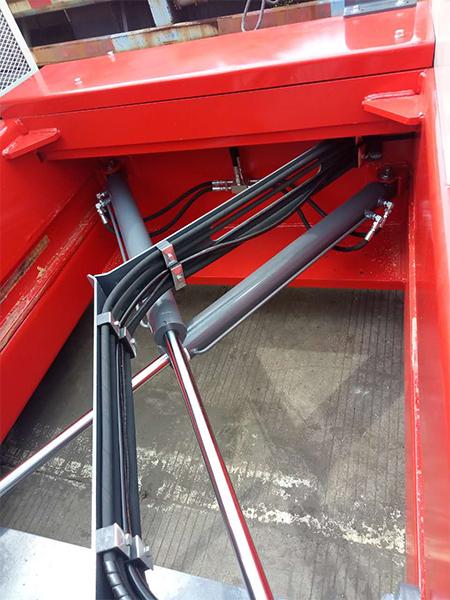

Cross double cylinder drive motor makes mast more smmoth and reliable.

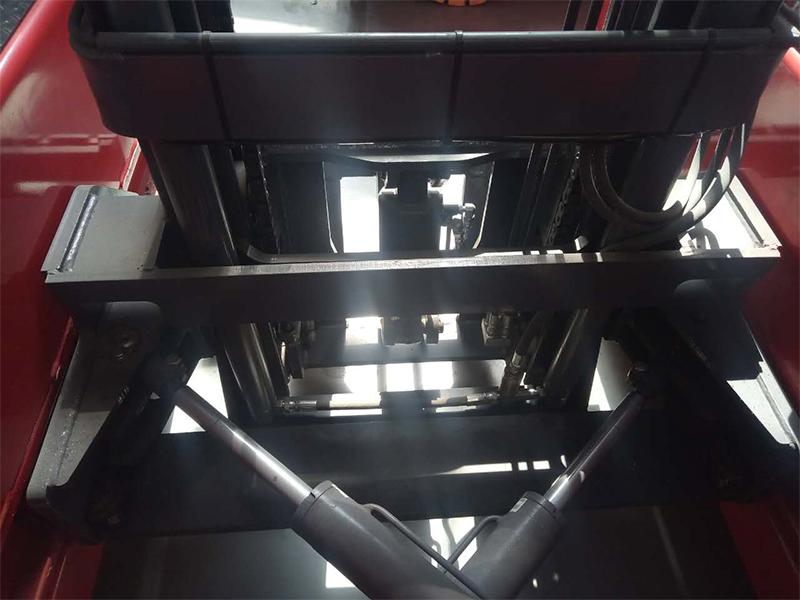

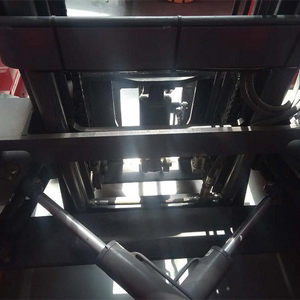

Mast frame is durable and reliable.

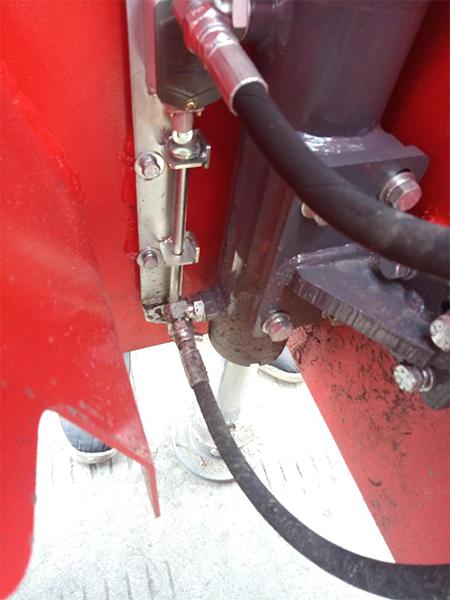

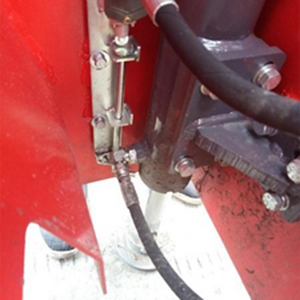

Sideloader lock makes operating more safe and reliable.
Technical Parameters
General
1
Model
FDS30-Y2
2
Power Type（Electric, Diesel, Gasoline, LPG）
Diesel
3
Load Capacity
kg
3000
4
Load Centre
mm
500
Weight
5
Service Weight
kg
Tyre & Chassis
6
Tyre（Pneumatic Tyre, Solid Tyre, Green Tyre）
Pneumatic Tyre
7
Number of wheels front/rear(x = driven wheels)
2X/2
8
Front Tyre
28×9-15-12PR
9
Rear Tyre
28×9-15-12PR
10
Track width, front
S
mm
1660
11
Track width, rear
P
mm
1660
12
Wheelbase
L5
mm
2580
Dimension
13
Lift Height
h3
mm
3600
14
Fork Size
L×W×T
L3×W×T
mm
1070×125×45
15
Mast Tilt Angle
F/R
α/β
。
4/6
16
Mast Lowered Height
h1
mm
2420
17
Free Lift Height
h2
mm
125
18
Mast Extended Height
h4
mm
4255
19
Width over forks(outside)
R
mm
1060
20
Overall Length
L
mm
4550
21
Mast Width
B
mm
2000
22
Overall Width
B2
mm
3100
23
Overhead Guard Height
h5
mm
2480
24
Platform Height
h7
mm
890
25
Assist Grip Height
mm
1030
26
Min. Turning Radius
Wa
mm
4250
27
Max. Inside Turning Radius
Wb
mm
850
28
Ground Clearance（Bottom of Mast）
m1
mm
140
29
Ground Clearance（Bottom of Frame）
h6
mm
190
30
Front Overhang
X
mm
625
31
Rear Overhang
L4
mm
1200
Performance
32
Max. Travel Speed(Full load/Empty load)
I
km/h
18/19
33
Max. Lifting Speed(Full load/Empty load)
mm/s
440/460
34
Max. Lowering Speed（Full load/Empty load）
mm/s
450/370
35
Max. Removal Speed（Full load/Empty load）
230/240
36
Max. Gradeability(Full load)
%
15
Engine & Transmission
37
Battery (voltage/capacity)
V/Ah
12/560
38
Engine
Model
4TNE98-BQFLC
39
Rated output/rpm
kw/rpm
43/2300
40
Rated torque/rpm
Nm/rpm
177.6-196.3/1700
41
No. of Cylinder
4
42
Bore × Stroke
98×110
43
Displacement
L
3.318
44
Emission Standards
EU III A
45
Fuel Tank Capacity
L
65
46
Transmission
Type
Hydraulic Transmission
47
Gears：D/R
1/1
48
Type of Transmission
1/1Powershifting
Additional Data
49
Operating Pressure for Hydraulic System
Mpa
17.5
