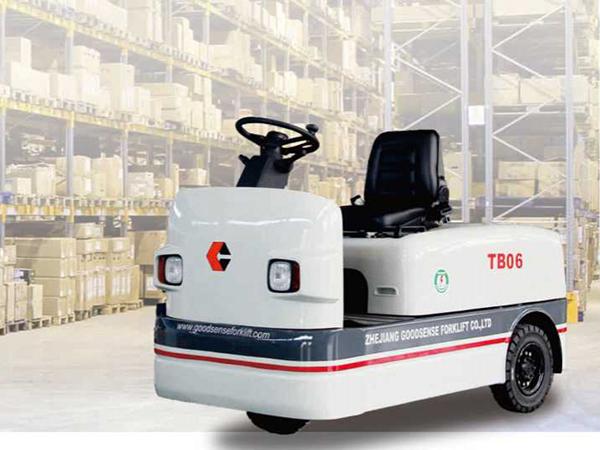

6t Electric Tow Tractor

6t electric tow tractor is a compact body featuring small turning radius and excellent motor, equipped with a reduction gearbox. Inching switch increases working efficiency.

Details

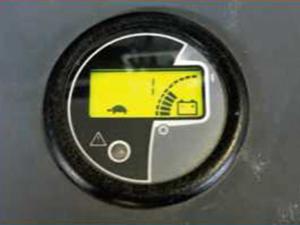

• Multi-function liquid crystal instrument
  Good-looking liquid crystal instrument is versatile, efficient and reliable.
• Hood
  Hood with gas spring can be wide open, convenient for maintenance and repair.

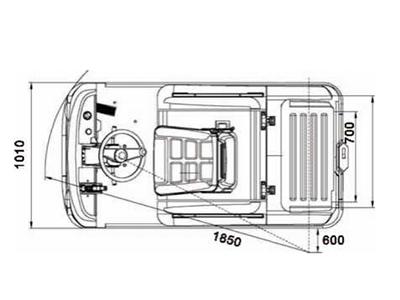

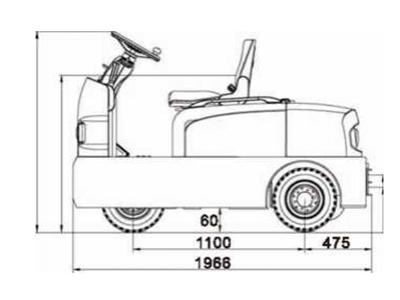

Contour

•

•

Technical Parameters

Characteristic
Model		TB06
Power Type		Battery
Operator Type		Seated
Rated Capacity	kg	6000
Rated Drawbar Pull	N	1600
Wheelbase	mm	1100
Service Weight	kg	1150
Dimension
Overall Length	mm	1966
Overall Width	mm	1010
Overall Height	mm	1300
Ground Clearance	mm	60
Turning Radius	mm	1850
Tyres
Tires		Solid tire
Tire Size (Front)	mm	4.00-8
Tire Size(Rear)	mm	4.00-8
Number of wheels Front/Rear(x=driven wheels)		1/2x
Tread Rear	mm	820
Performance
Travel (Loaded/Unloaded) Speed	km/h	9.5/10.5
Max. Drawbar Pull	N	6500
Service Brake		Electromagnetic + Hydraulic
Electric Motor
Drive Motor Rating S2 60mln	kW	6 (AC)
Battery acc. to DIN 43531/35/36 A，B, C, no		DIN
Battery Voltage, Nominal Capacity K5	V/Ah	48/275
Battery Weight	kg	540
Additional Data
Type of Drive Controller		MOSFET
Sound level at driver's ear acc. to EN 12053	dB（A)	< 70
