25t/38t Electric Tow Tractor

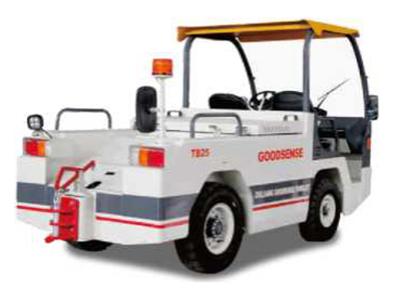

25t/38t electric tow tractor, with hydraulic power steering system, plate spring and absorber, is more maneuverable. Draft gear in 25t/38t electric tow tractor is easy to use. Half-closed cabin provides clear visibility for drivers. Accurate CURTIS controller has a self-diagnosis feature.

Details

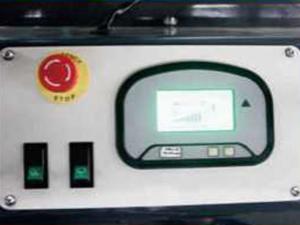

CAN Big-screen LED Instrument
This multi-functional instrument has good electromagnetic compatibility and waterproof and dustproof features.

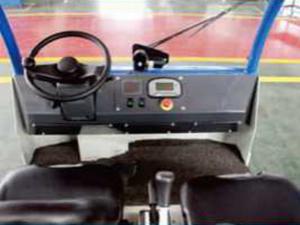

Manual Transmission
Auto manual transmission features fluorescent display and its lock button can help prevent drivers' misoperation.

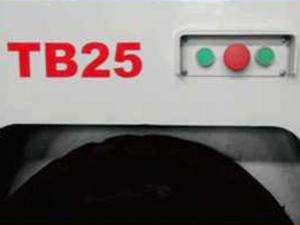

Switch
Inching switch increases working efficiency.

Technical Parameters

Model		TB25
Power Type		Battery
Rated Traction Weight	kg	25000
Service Weight	kg	4500
Overall Length	mm	3860
Overall Width	mm	1420
Height	mm	1940
Wheelbase	mm	1610
Front Overhang	mm	1225
Wheel Tread (F/R)	mm	1235/1185
Towing Couplers Height	mm	304.8
Ground Clearance	mm	110
Turning Radius	mm	3450
Front		6.50-10-1 OPR
Rear		7.00-12-12PR
Travel (Loaded/Unloaded)	km/h	10/20
Front Axle Load	kg	2000
Rear Axle Load	kg	2500
Max Drawbar Pull	kN	22
Rated Traction	kN	6
Empty	h	12
15t Loaded	h	4
15t Half load	h	6
Rated Power	kW	23
Rated Torque	N • m	106.5
Rated Speed	r.p.m	2063
Rated Current	A	295
Motor Rating		S2 60min
Type		Lead-acid Battery
Voltage/Capacity	V/Ah	80/660

Model		TB25R-1	TB25R-2
Power Type		Battery
Rated Traction	kg	25000
Service Weight	kg	5000	4300
Overall Length	mm	3447
Overall Width	mm	1440
Height	mm	1766/2000 (without alarm lamp）
Wheelbase	mm	2065
Front Overhang	mm	570
Wheel Tread (F/R)	mm	1180/1215
Towing Coupler Height (Under/On)	mm	300/400
Ground Clearance	mm	150
Turning Radius	mm	3050
Travel (Loaded/Unloaded)	km/h	10/25
Front Axle Load	kg	1450	1150
Rear Axle Load	kg	3550	3150
Max Drawbar Pull	kN	25
Max Drawbar Pull (6km/h)	kN	13
Mileage	km	60
Braking Distance (Full Draw 10km/h)	m	≤5.5
Rated Output	kW	23
Rated Torque	N.m	106.5
Rated Speed	r.p.m	2063
Rated Voltage	V	55
Rated Current	A	295
Type		Lead-acid battery	Lithium iron phosphate battery
Voltage/Capacity	V/Ah	80/550
Working Voltage	V	80
Max Working Current	A	540

Model		TB30HV
Power Type		Battery
Rated Traction	kg	38000
Service Weight	kg	4500
Overall Length	mm	3190
Overall Width	mm	1450
Height	mm	2000
Wheelbase	mm	1615
Front Overhang	mm	730
Rear Overhang	mm	845
Wheel Tread (F/R)	mm	1220/1185
Towing Coupler Height (Under/On)	mm	304.8/405
Ground Clearance	mm	150
Turning Radius	mm	3000
Travel (Loaded/Unloaded)	km/h	12/25
Front Axle Load	kg	1200
Rear Axle Load	kg	3300
Max Drawbar Pull	kN	30
Rated Drawbar Pull (6km/h)	kN	13
Mileage	km	60
Braking Distance (Full Draw 10km/h)	m	≤5
Rated Output	kW	30
Rated Torque	N • m	191
Rated Speed	r.p.m	1500
Rated Voltage	V	360
Rated Current	A	300
Type		Lithium iron phosphate battery
Voltage/Capacity	V/Ah	320/200
Working Voltage	V	540
Max Working Current	A	500
