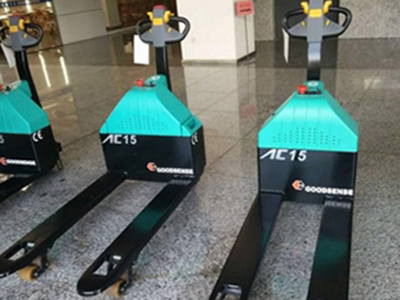

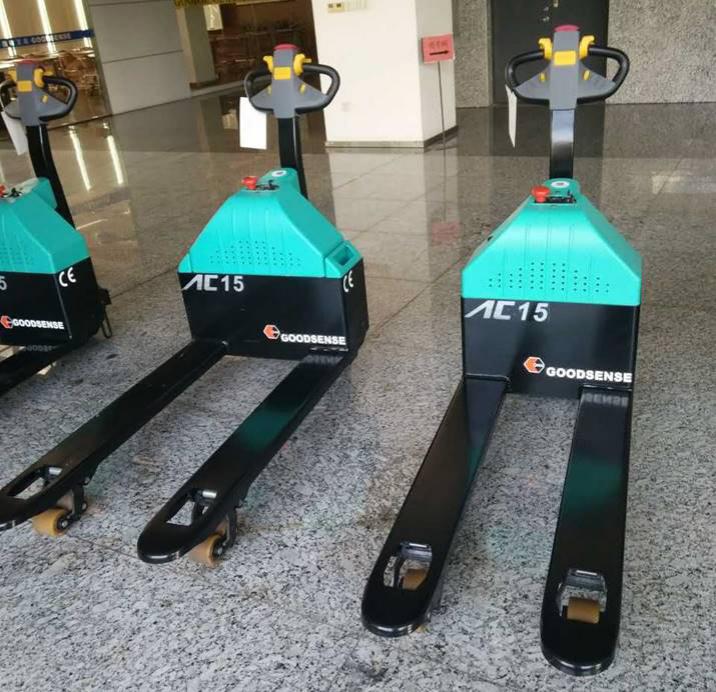

This portable 1.3-1.5 t electric pallet truck enables manual drawing when there is power failure. This type of truck has an advantage of smooth operation because its balance wheel always touch the ground. The instrument, key and switch are placed behind the truck to prevent water inflow and falling impact.
Cost-effective 1.3-1.5 t electric pallet truck is the perfect choice for customers who have no high requirements for tonnage.
Details

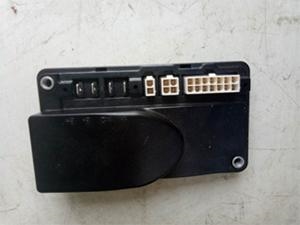

PG and CURTIS controllers are stable and reliable.

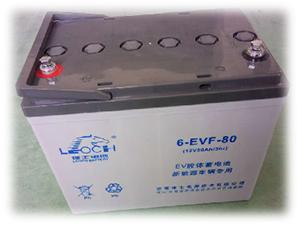

Large maintenance-free battery capacity.

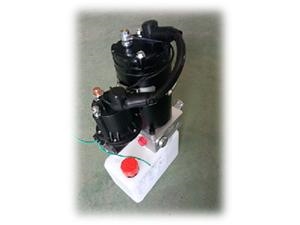

Integrated power unit of pump, valve and motor.

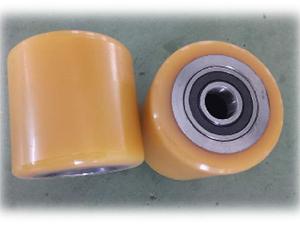

High strength polyurethane wheels

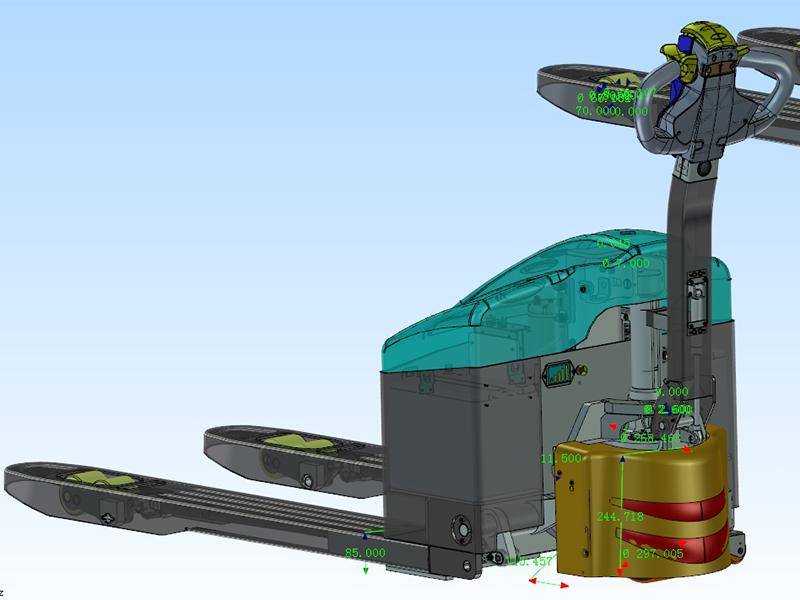

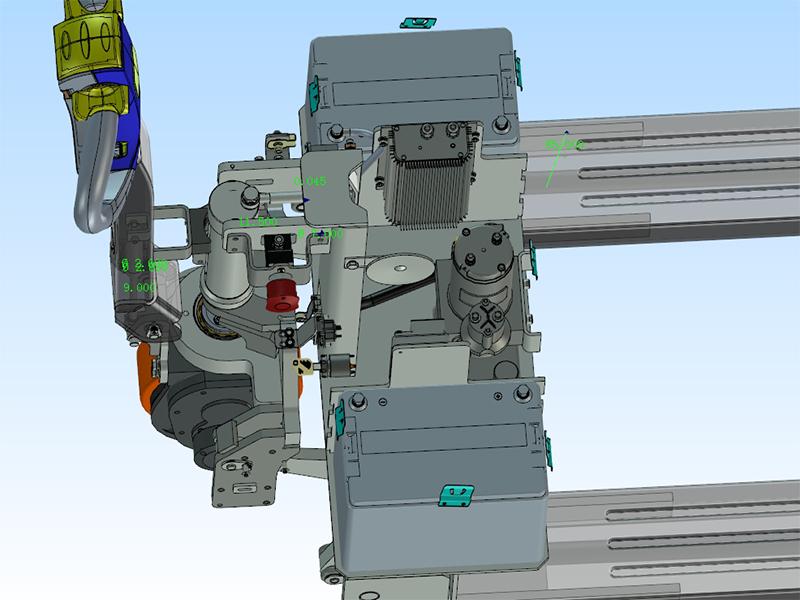

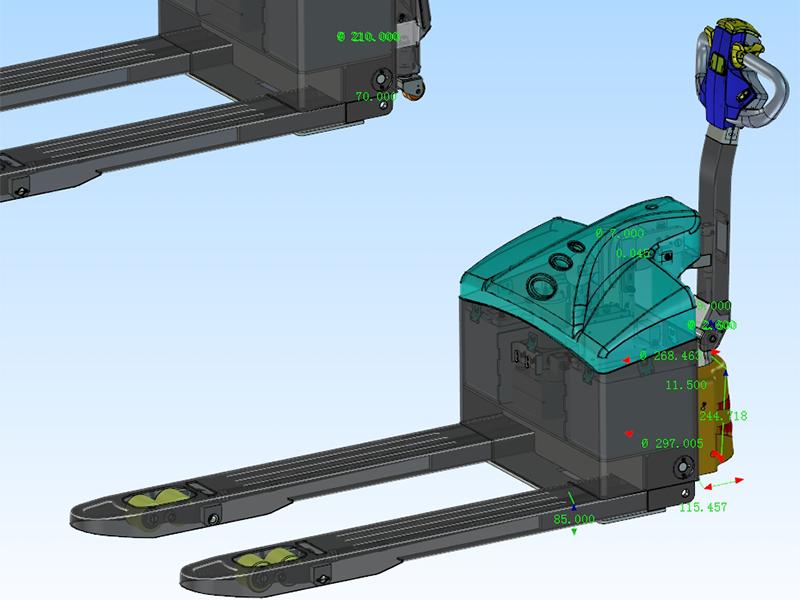

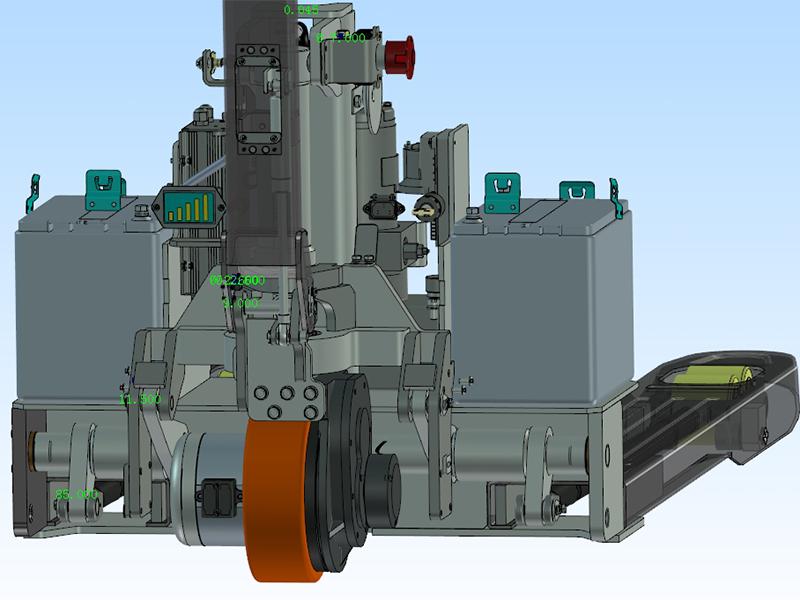

Structure Diagram
Technical Parameters
General
Model
FBTA13
FBTA15
Power Type
Battery
Battery
Operation Type
Pedestrian
Pedestrian
Load Capacity
kg
1300
1500
Load Centre
mm
600
600
Weight
Service Weight（with battery）
kg
195
215
Load Wheel Capacity(Full load/Empty load)
kg
Drive Wheel Capacity(Full load/Empty load)
kg
Tyre & Chassis
Tyre Material
Polyurethane（PU）
Polyurethane（PU）
No. of Wheels（ driven wheels X + Balance Wheel/Load Wheel ）
1X+2/4
1X+2/4
Drive Wheel
mm
Ø210*70
Ø210*70
Load Wheel
mm
Ø80*70
Ø80*70
Balance Wheel
Ø55*28
Ø55*28
Wheelbase
mm
1152
1152
Dimension
Fork Size
L×W×T
mm
1150*160*50
1150*160*50
Lift Height
mm
205
205
Width over forks(outside)
mm
520/550/560
520/550/560
Overall Length
mm
1720
1720
Overall Width
mm
685
685
Overall Height
mm
703
703
Min. Ground Clearance(forks)
mm
85/80
85/80
Front Overhang
mm
954
954
Min. Turning Radius
mm
1366
1366
Min. Ground Clearance
mm
25
25
Min. Aisle width for Pallets 1000X1200
mm
1925
1925
Performance
Max. Travel Speed(Full load/Empty load)
km/h
3.5/4
3.5/4
Max. Lifting Speed(Full load/Empty load)
mm/s
35/45
35/45
Max. Lowering Speed（Full load/Empty load）
mm/s
45/35
45/35
Max. Gradeability(Full load/Empty load)
%
8/15
5/15
Braking System
Electromagnetic
Electromagnetic
Battery
Battery (Voltage/Capacity)
V/Ah
2X12V/65Ah
2X12V/80Ah
Motor power
Travel(Drive motor)
Kw
0.75
0.75
Lifting(Lift motor)
Kw
0.8
0.8
Type of drive controller
DC
DC
Operating Pressure for Hydraulic System
Mpa
7.5
8.5
