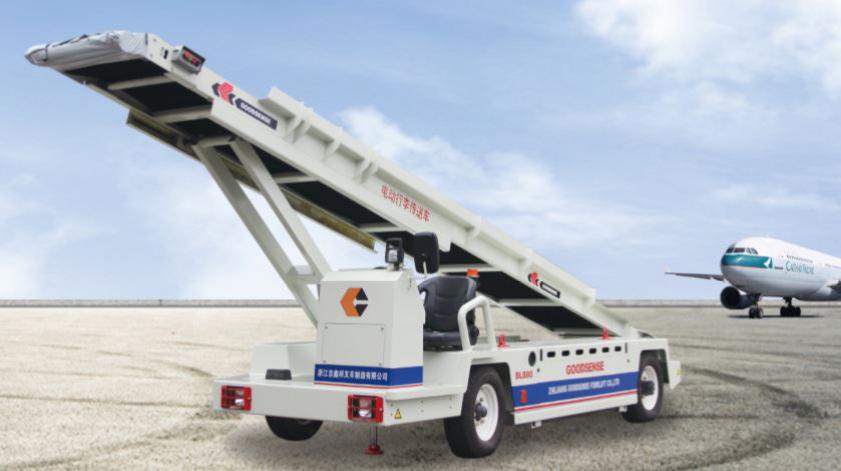

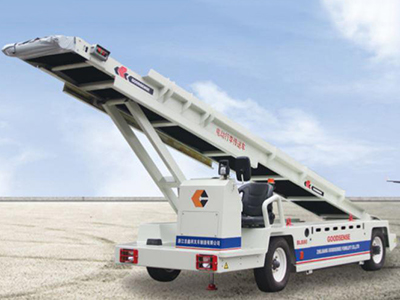

Belt loader is material handling equipment for loading and unloading baggage and cargo onto aircraft. The belt loader consists of automobile chassis, cab, transmission frame, hydraulic system and electrical system.
Our belt loader has strong load capacities and are convenient for maintenance and repair. It can serve all needs of different type of planes. Hydraulic booster steering system guarantees easy steering. Simple operating screen and well-designed belt improve working efficiency. High power engine and auto CVT bring strong power and excellent performance. Rigid chassis makes sure the loader is stable and maneuverable. Emergency hand pump bring higher safety.

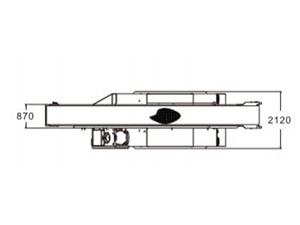

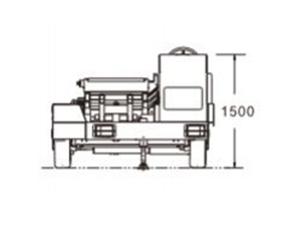

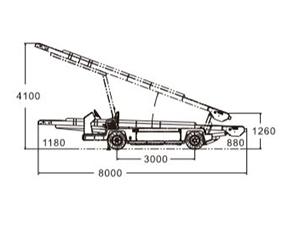

Contour
| Model | BLB 80 | |
| Power Type | Battery | |
| Max Transmission Unit | kg | ≥350 |
| Max Transmission Capacity | kg | ≥ 1200 |
| Service Weight | kg | 3300 |
| Transfer Length | mm | 7650 |
| Transfer Width | mm | 870 |
| Conveyor Belt Width | mm | 600/700 |
| Conveyor Belt Transmission Speed | mm/s | 160-500 |
| Conveyor Belt Max Tilt Angle | o | 29 |
| Transfer Extend Height (F/R) | mm | 4100/1260 |
| Transfer Lowered Height (F/R) | mm | 1180/880 |
| Overall Length | mm | 8000 |
| Overall Width | mm | 2120 |
| Height | mm | 1500 |
| Wheelbase | mm | 3000 |
| Wheel Tread (F/R) | mm | 1710/1695 |
| Ground Clearance | mm | 150 |
| Turning Radius | mm | ≤7600 |
| Max Approach Angles | o | 16 |
| Min Departure Angles | o | 17 |
| Tire | 225/70 R15 | |
| Travel Speed (Unloaded) | km/h | ≥28 |
| Front Axle Load | kg | 2400 |
| Rear Axle Load | kg | 3000 |
| Max. Gradeability | % | 10 |
| Operating Pressure | Mpa | 8-12 |
| Max Operating Pressure | Mpa | 14 |
| Hydraulic Transmission Motor Displacement | L | 0.4 |
| Hydraulic Oil Tank Capacity | L | 70 |
