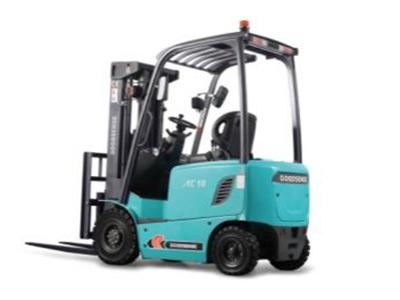

4-Wheel Electric Counterbalance Forklift

4-Wheel Electric Forklift features stable performance, easy manoeuvre, low operation costs and wide applications. It is the perfect choice for indoor stacking and stacking between racks.
This type of 4-Wheel Electric Counterbalance Forklift is the best option if you have no specific requirements for space.
We have options for 4-Wheel Electric Counterbalance Forklift of different tonnage for you.

Details

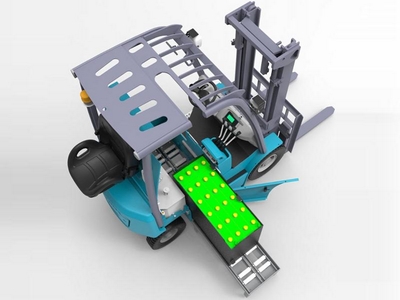

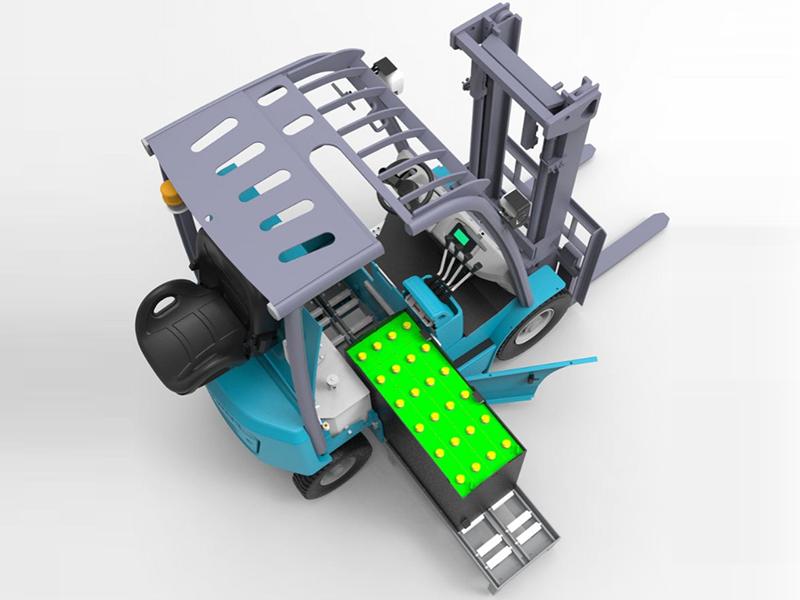

Battery Holder
The maximum height of battrey holder is 190mm for easy charging.

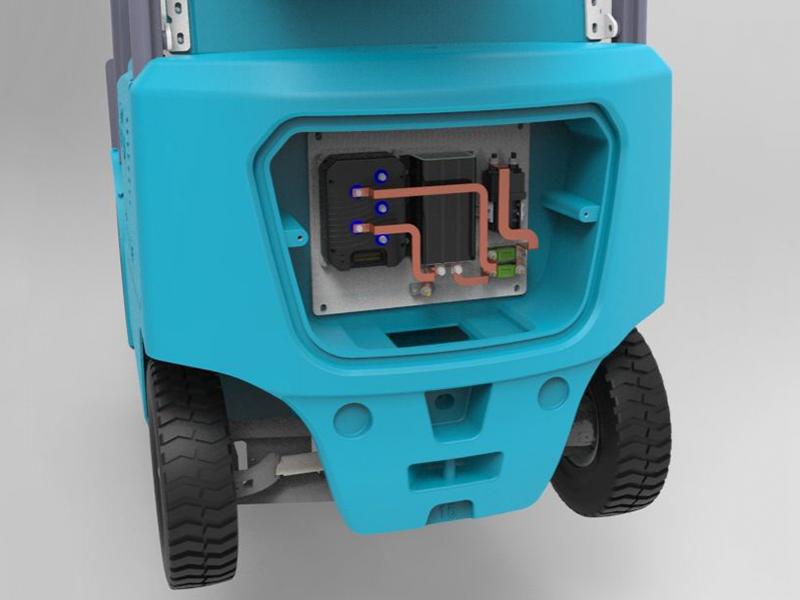

Controller
Controller features regenerative brake, ramp brake and On-Board Diagnostics.

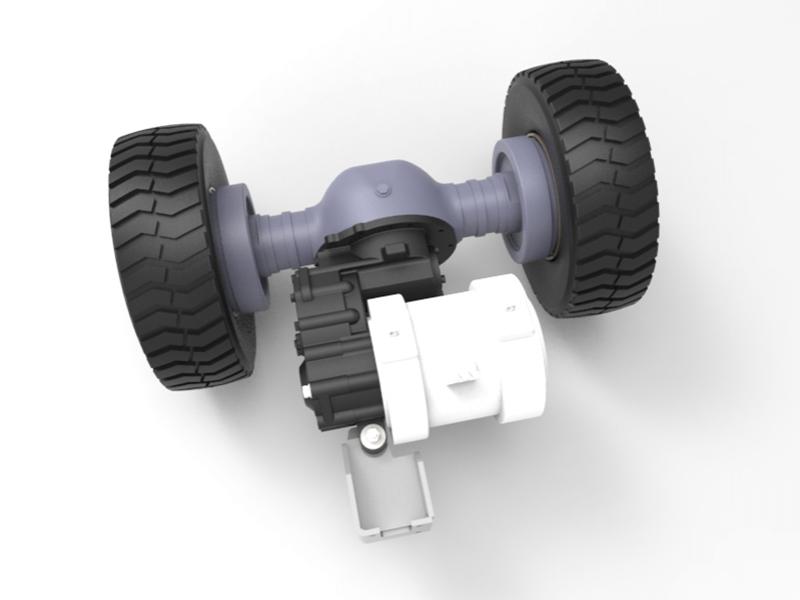

Transmission System
Low placement of battery brings lower gravity centor and good stability.

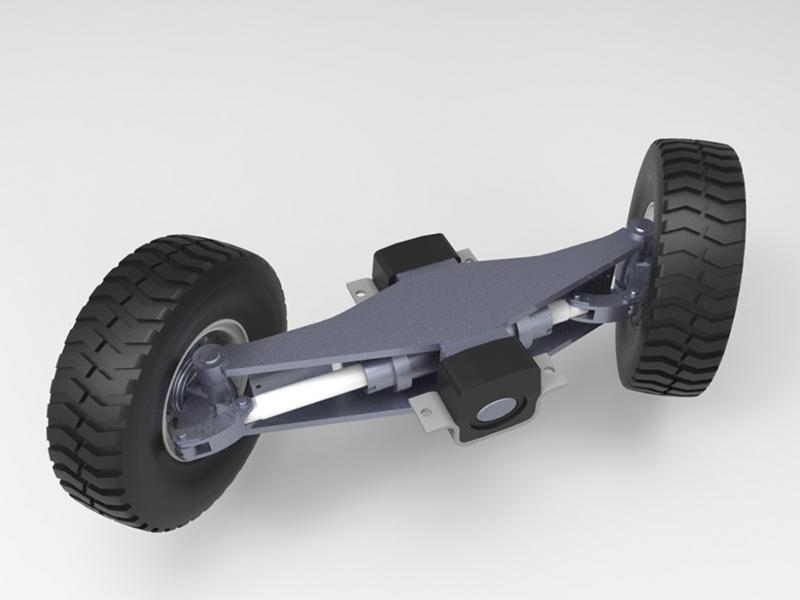

Steering System
Steer axle connects to trucks with rubber blankets for cushioning and smooth driving experience.

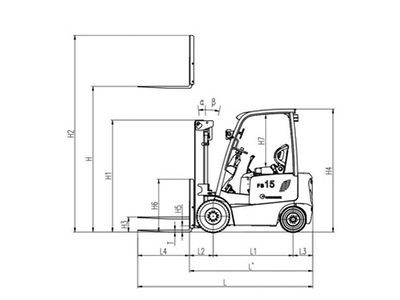

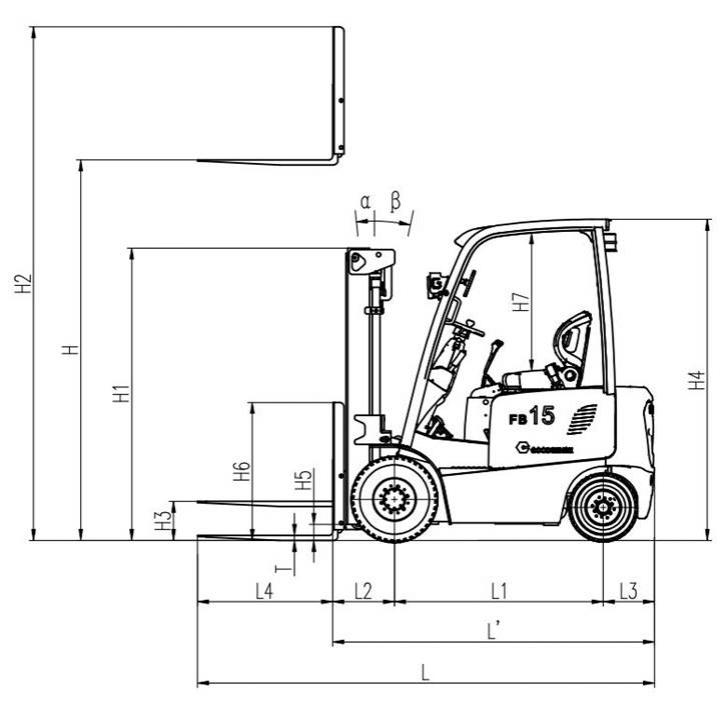

Contour

Technical Parameters

Model				FB15	FB20	FB30	FB50-C2	FB60-C2
General	Power Type			Battery
	Load Capacity		kg	1500	2000	3000	5000	6000
	Load Centre		mm	500
	Service Weight		kg	3280	4170	5100	7970	8460
Chassis	Tyre type			Solid Tyre
	Number of wheels x = driven wheels (front/rear)			2X/2
	Front Tyre			6.50-10	7.00-12	28×9-15	28×12.5-15
	Rear Tyre			5.00-8	18×7-8		7.00-12
	Track width, front		mm	890	960	1000	1280
	Track width, rear			920	950	980	1190
	Wheelbase			1420	1510	1700	2000
Dimensions	Lift Height			3000
	Fork Size	L×W×T		920×120×35	1070×120×40	1070×125×45	1070×150×50
	Mast Tilt Angle	F/R	.	6/12			6/9
	Mast Lowered Height		mm	1995	2070	2150	2330
	Mast Extended Height(with backrest)			3940	4070	4175	4165
	Width over forks(outside)			240-970	240-1040	250-1100	300-1380
	Length to face of fork(Without fork/With fork)			2190/3110	2360/3430	2610/3680	3140/4210
	Overall Width			1090	1160	1230	1600
	Overhead Guard Height			2195	2240	2250	2255
	Assist Grip Height			1020			1000
	Front overhang			420	465	480	579
	Min. Turning Radius			2010	2075	2350	2817
	Ground Clearance（Bottom of mast）			110	110	140	170

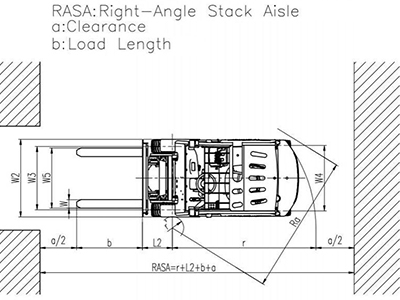

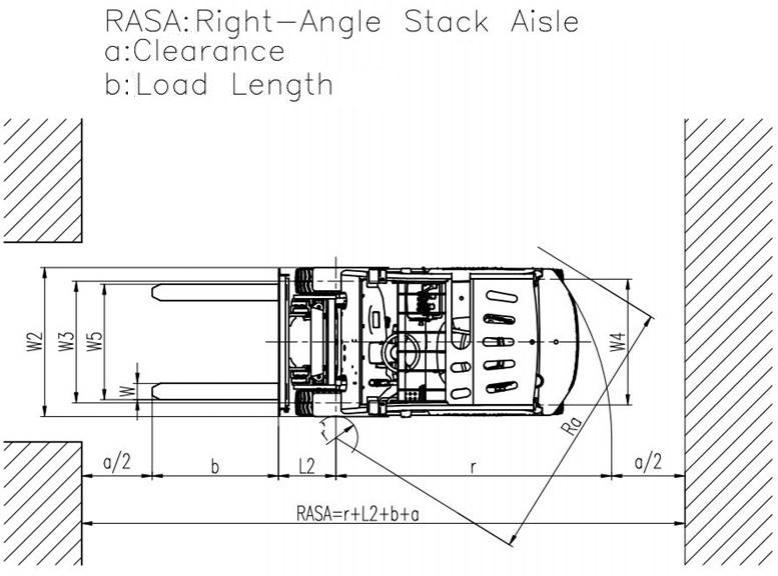

	Min. Aisle width			2050	2250	2425	2955
	Min. Stacking Aisle width			3600	3740	4070	4670
Performance	Max. Travel Speed(Full load/Empty load)		km/h	13/14
	Max. Lifting Speed(Full load/Empty load)		mm/s	320/380	300/380	300/360	280/310	260/310
	Max. Lowering Speed（Full load/Empty load）			≤600/≥300
	Max. Gradeability(Full load)		%	15
Power	Battery (Voltage /capacity)		V/Ah	48/400	48/560	80/500	80/700	80/800
	Battery Size	L×W×T	mm	970×530×685	980×515×810	1015×690×815	1195×840×755
	Engine power	Travel(Drive motor)	Kw	8	11	15	11×2
		Lifting(Lift motor)		8.6	8.6	12	12×2
	Type of motor controller			CURTIS AC			CURTIS AC
