3-3.5t 2WD Rough Terrain Forklift

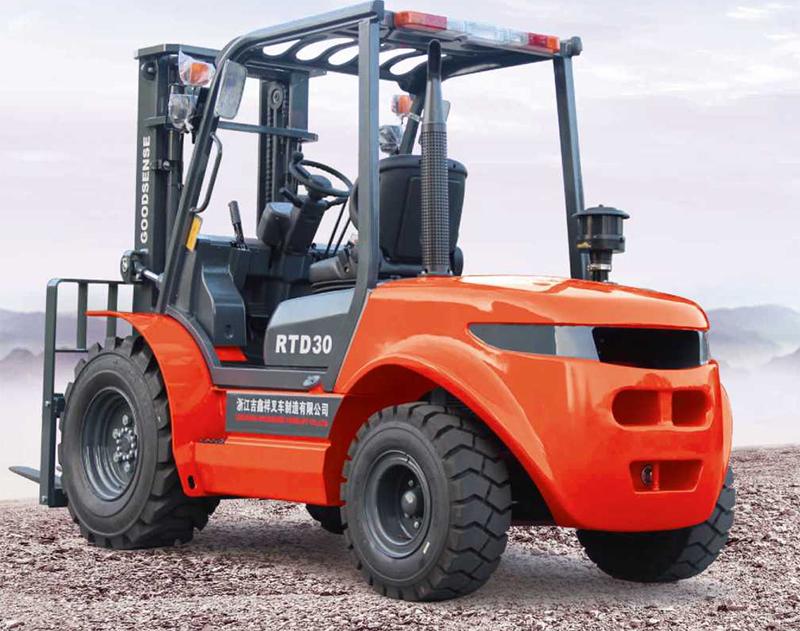

3-3.5t 2WD Rough Terrain Forklift

3-3.5t 2WD rough terrain forklift is designed for outdoor construction sites or other applications. Low center of gravity makes the truck more stable. Wide tires with deep tread bring excellent capabilities.

3-3.5t 2WD rough terrain forklift with LCD intrument and electronic gear shifting equipment is easy to operate. Double core straight air filter is efficient in air purification whose exhaust system and water-proof device can help to prevent contaminants from getting into the motor.

3-3.5t 2WD rough terrain forklift's mast gives operators clear visibility. 4 shock pats between overhead guard and frame can effectively prevent impact.

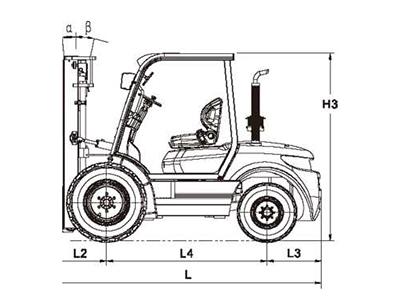

Contour

Technical Parameters

Model			RTD30-X35	RTD35-X35
Power Type			Diesel	Diesel
Rated Capacity		kg	3000	3500
Load Centre		mm	600	600
Service weight		kg	4800	5150
Tyre Type (Front/Rear)			Pneumatic Tire	Pneumatic Tire
Wheel number X = drive wheel (Front/Rear)			2X/2	2X/2
Tyre Size (Front)			14-17.5-14PR	14-17.5-14PR
Tyre Size (Rear)			27X10-12-12PR	27X10-12-12PR
Front Tread	W1	mm	1250	1250
Rear Tread	W2	mm	1205	1205
Wheelbase	L4	mm	1835	1835
Fork Size (LxWxT)	L1	mm	1220x125x45	1220x125x50
Mast Tilt Angle (F/R)	α/β	deg	8/10	8/10
Lift Height	H	mm	3000	3000
Mast Lowered Height	H1	mm	2205	2240
Free Lift Height	H5	mm	110	110
Mast Extended Height	H2	mm	4200	4200
Length to Face of Fork	L	mm	3046	3116
Overall Width	W	mm	1605	1605
Overhead Guard Height	H3	mm	2150	2150
Front Overhang	L2	mm	591	606
Rear Overhang	L3	mm	620	675
Turning Radius (outside)	r	mm	2750	2810
Ground Clearance (Bottom of mast)	H4	mm	230	230
Min. intersecting aisle	Ra	mm	2900	2960

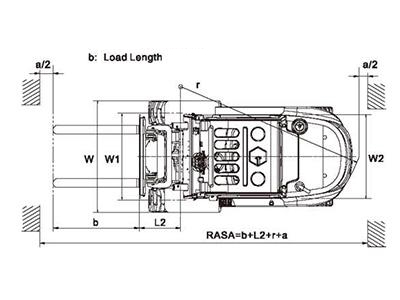

Min. right angle stacking aisle width	RASA	mm	4550	4610
Max. Travel Speed (Full load/No load)		km/h	19/20	19/20
Lifting Speed (Full load/No load)		mm/s	430/500	400/500
Lowering Speed (Full load/No load)		mm/s	≤600 / ≥300	≤600 / ≥300
Max. Gradeability (Full load)		%	16	16
Engine Model			4D32G31-059	4D32G31-059
Rated output/r.p.m		kw/rpm	36.8/2500	36.8/2500
Rated torque/r.p.m		Nm/rpm	186/1600-1800	186/1600-1800
No. of Cylinder			4	4
Bore x Stroke		mm	98x105	98x105
Displacement		L	3.167	3.167
Emission Standards			CN III	CN III
Fuel Tank Capacity		L	60	60
Battery (Voltage/Capacity)		V/Ah	12/80	12/80
Transmission Type			Hydraulic	Hydraulic
Stage FWD/RVS			1/1Powershifting	1/1Powershifting
Operating Pressure		Mpa	18	18
