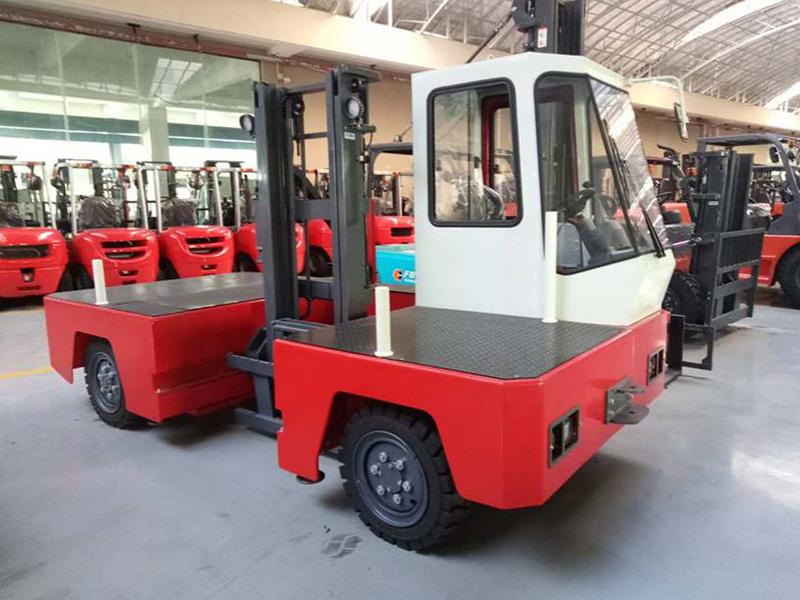

Electric sideloader differs with diesel sideloader in power source. Electric powered sideloader ensures safe and stable movement and comfortable driving experience. Dual motors bring excellent performance.
Details

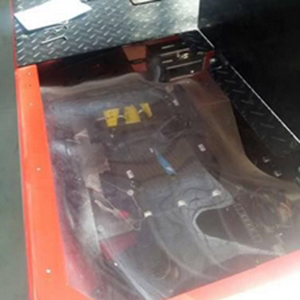

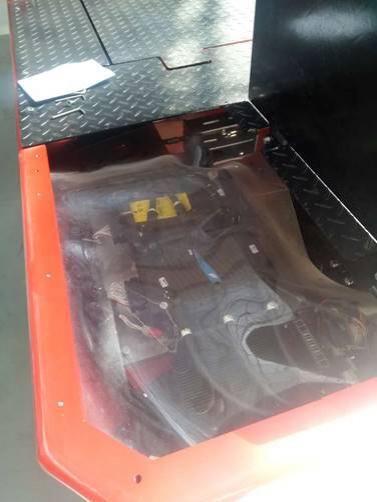

Maintenance-free AC motor features safety and reliability.

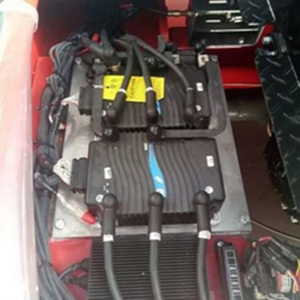

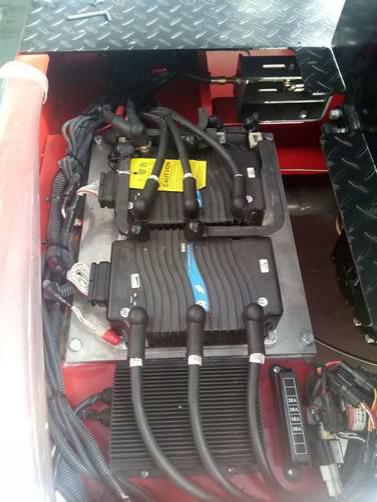

Waterproof design is applied in controllor.

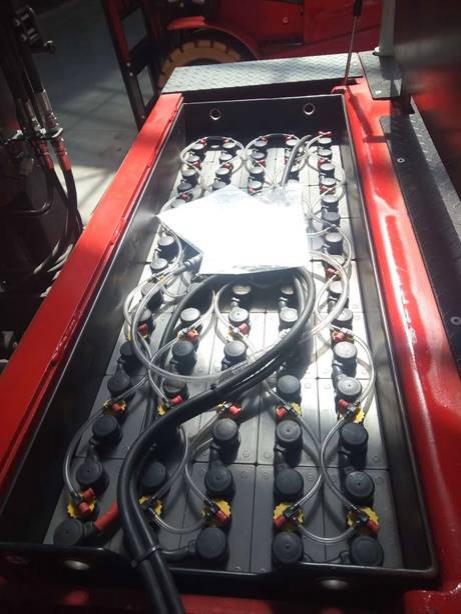

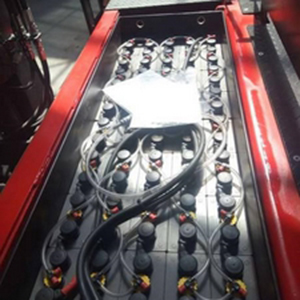

We use new energy which is energy-saving and environment-friendly, and 500(550)Ah battery can serve the needs for daily use.

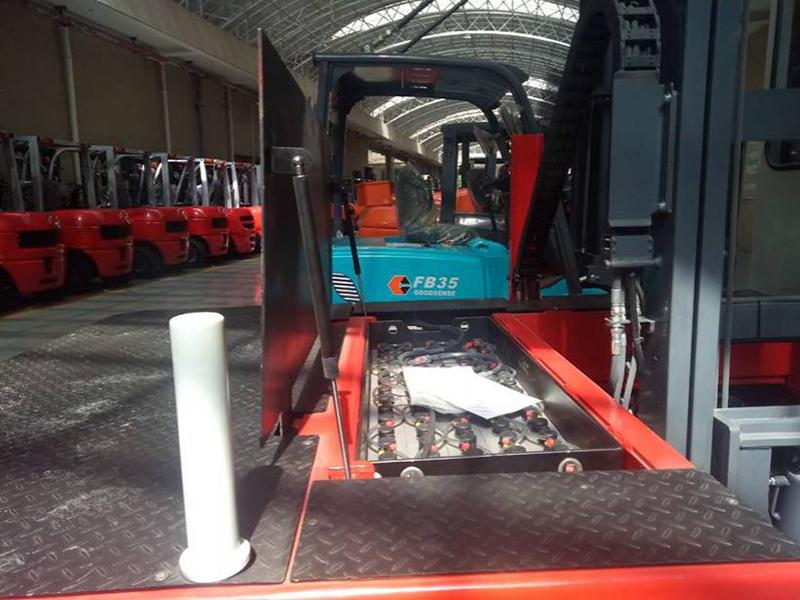

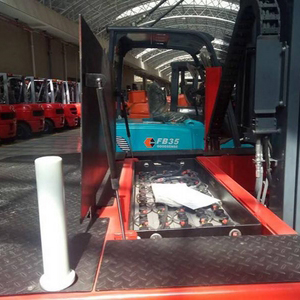

Battery cover can be opened 90° for easy maintenance and repair.
Technical Parameters
General
1
Model
FBS30
2
Power Type（Electric, Diesel, Gasoline, LPG）
Electric
3
Operator Type （Stand, Sit）
Sit
4
Load Capacity
kg
3000
5
Load Centre
mm
500
Weight
6
Service Weight
kg
7235
Tyre & chassis
7
Tyre（Pneumatic Tyre, Solid Tyre, Green Tyre）
Pneumatic Tyre
8
Number of wheels front/rear(x = driven wheels)
2X/2
9
Front Tyre
28×9-15-12PR
10
Rear Tyre
28×9-15-12PR
11
Track width, front
S
mm
1660
12
Track width, rear
P
mm
1660
13
Wheelbase
L5
mm
2680
Dimension
14
Lift Height
h3
mm
3600
15
Fork Size
L×W×T
L3×W×T
mm
1070×125×45
16
Mast Tilt Angle
F/R
α/β
。
4/6
17
Mast Lowered Height
h1
mm
2420
18
Free Lift Height
h2
mm
125
19
Mast Extended Height
h4
mm
4255
20
Width over forks(outside)
R
mm
1060
21
Overall Length
L
mm
4400
22
Mast Width
B
mm
2000
23
Overall Width
B2
mm
3100
24
Overhead Guard Height
h5
mm
2520
25
Platform Height
h7
mm
930
26
Assist Grip Height
mm
1030
27
Min. Turning Radius
Wa
mm
4400
28
Max. Inside Turning Radius
Wb
mm
880
29
Ground Clearance（Bottom of Mast）
m1
mm
140
30
Ground Clearance（Bottom of Frame）
h6
mm
142
31
Front Overhang
X
mm
720
32
Rear Overhang
L4
mm
860
Performance
33
Max. Travel Speed(Full load/Empty load)
I
km/h
12/13
34
Max. Lifting Speed(Full load/Empty load)
mm/s
270/390
35
Max. Lowering Speed（Full load/Empty load）
mm/s
400/306
36
Max. Removal Speed（Full load/Empty load）
93/92
37
Max. Gradeability(Full load)
%
15
Power
38
Battery (Voltage/Capacity)
V/Ah
80/500
39
Battery Size
L×W×T
mm
1289×488×755
40
Engine power
Travel(Drive motor)
Kw
15
41
Lifting(Lift motor)
Kw
12
42
Manufacturer of drive control
CURTIS
43
Type of drive control
AC
Additional Data
44
Operating Pressure for Hydraulic System
Mpa
17.5
