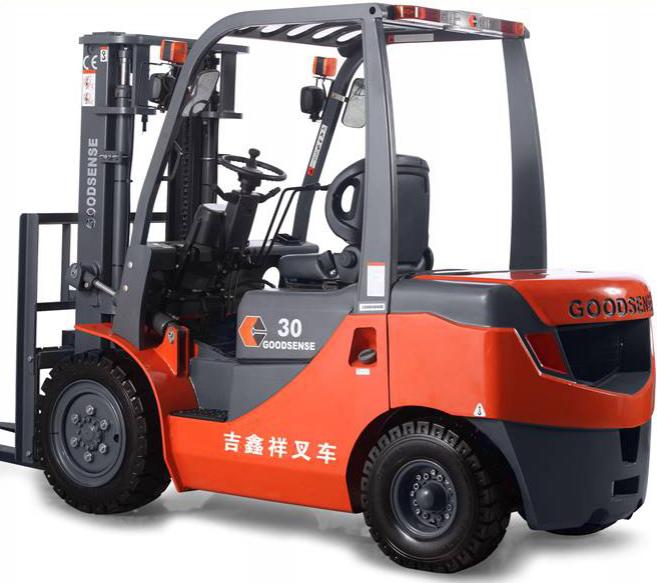

1.5-3.5t Diesel Forklifts/LPG Forklift
1.5-3.5t Diesel Forklifts/LPG Forklift

1.5-3.5t Diesel Forklifts/LPG Forklift has stylish appearance and can be fitted with power engines of various brands. We can provide a full-line of overhead guards and cabins to tailor your truck to meet the needs of your task.

1.5-3.5t Diesel Forklifts/LPG Forklift has single and dual fueling modes. Following are power options: Diesel, Gasoline, LPG, LNG, CNG.

Details
  •  Air Intake System

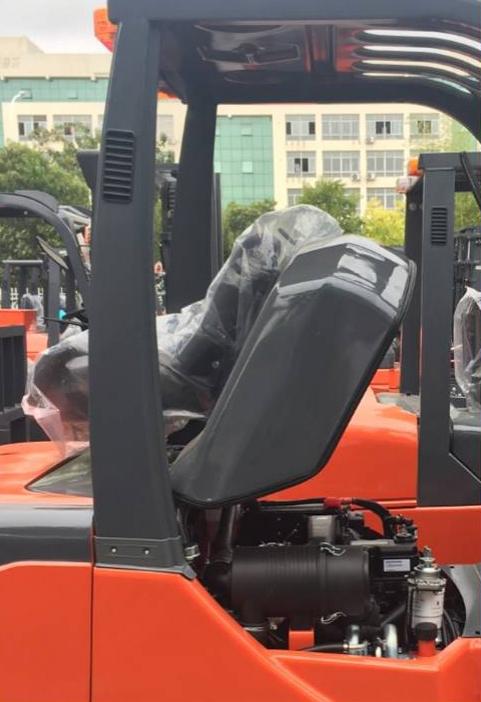

    Air Intake System
    Particles can be stopped from getting into air intake system if placed highly.

  •  Air Intake System

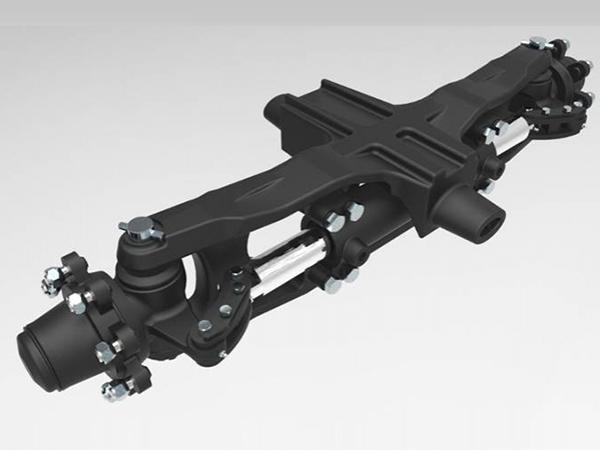

    Steering System
    Hydraulic power steering system alows for quicker steering, and its steering axle made by casting is more advantageous in operation.

  •  Air Intake System

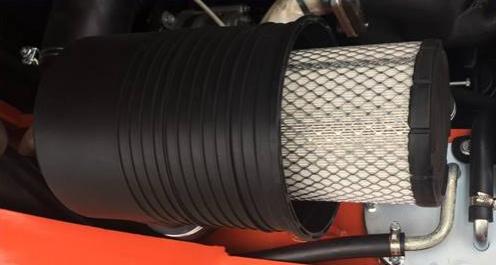

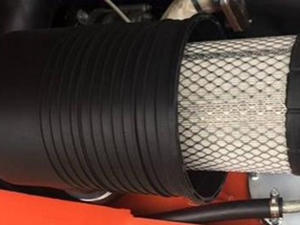

    Air Filter
    Forklifts are equipped with efficient high-flow air filters.

  •  Air Intake System

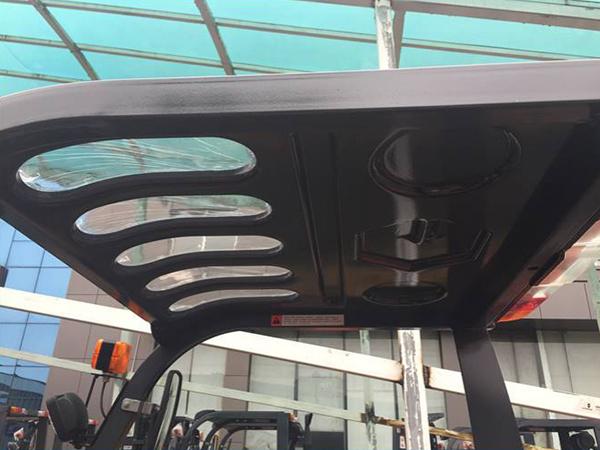

    Overhead Guard
    Overhead guard made by stamping has high strength and safety.

  •  Air Intake System

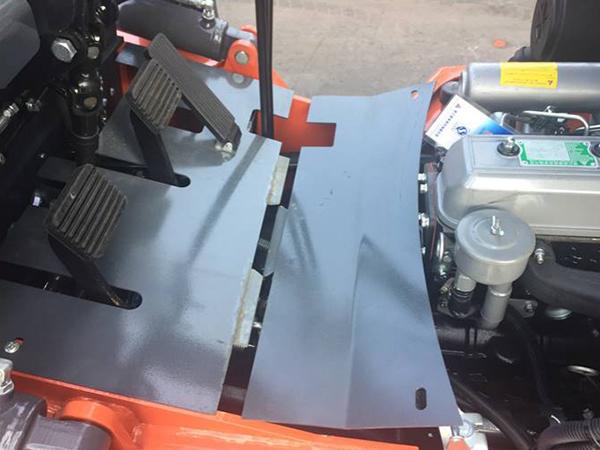

    Pedal
    Seperatable pedal is easy to maintain and repair.

  •  Air Intake System

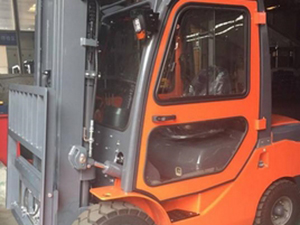

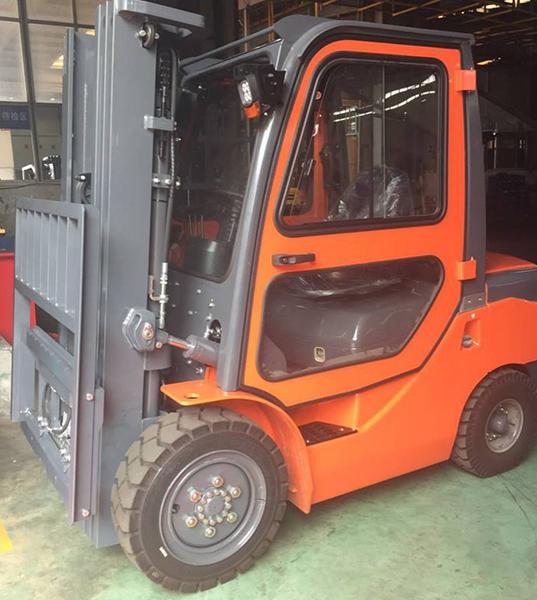

    Cabin
    Cabin equipped with fan heater and air conditioning is friendly for drivers to operate in hot and cold weather.

  •  Air Intake System

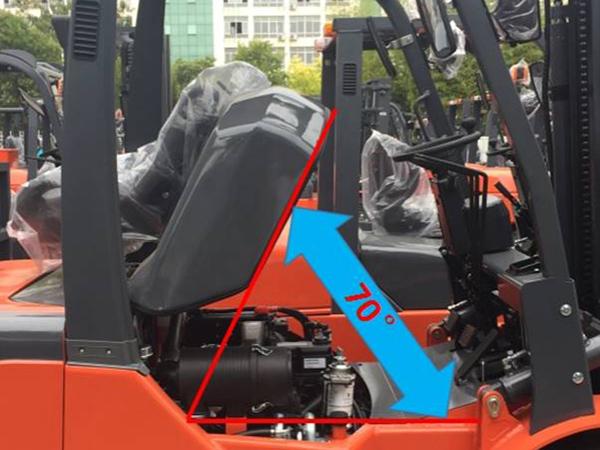

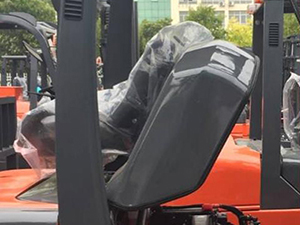

    Engine Case
    Engine case made by stamping is well-designed, tough and durable. It can be adjusted to 70° for easy maintenance and repair.
    Built-in soundproof foam can help to reduce noise of running machine dramatically.

Technical Parameters
Model FD15 FD18 FD20 FD25 FD30 FD35
General Load Capacity kg 1500 1800 2000 2500 3000 3500
Load Centre mm 500
Service Weight kg 2820 3030 3590 3790 4300 4500
Chassis Tyre type   Pneumatic Tire
Front Tyre   6.50-10-12PR 7.00-12-12PR 28×9-15-12PR
Rear Tyre   5.00-8-10PR 6.00-9-10PR 6.50-10-10PR
Track width, front mm 890 970 1000
Track width, rear 920 970 970
Wheelbase 1400 1600 1700
Dimension Lift Height 3000
Mast Tilt Angle F/R   6/12
Mast Lowered Height mm 1995 2070 2115
Mast Extended Height(with backrest) 3940 4070 4150
Length to face of fork(Without fork) 2295 2600 2730
Width over forks 1086 1150 1225
Overhead Guard Height 2040 2070 2090
Min. Turning Radius 2055 2310 2440
Min. Aisle width 2150 2380 2490
Min. Stacking Aisle width 3675 3980 4115
Performance Max. Travel Speed(Full load/Empty load) km/h 14.5/15 18/19 19/20
Max. Lifting Speed(Full load/Empty load) mm/s 440/500 530/570 510/550 450/480
Additional Data Fuel Tank Capacity L 45 60
Operating Pressure for Hydraulic System MPa 14.5 19

GOODSENSE is a company designs and manufactures forklifts and other material handling equipment. Our warehouse equipment portfolio comprising counterbalance forklifts, tow tractors, reach trucks, sideloaders etc. are built on the purpose of helping solve your material handling challenges related to warehousing and storage works. We carry a full line of testing equipment to ensure high quality material handling systems while improving facility safety. At GOODSENSE, we offer suitable and compliant material handling solutions to help you implement your warehousing tasks.
