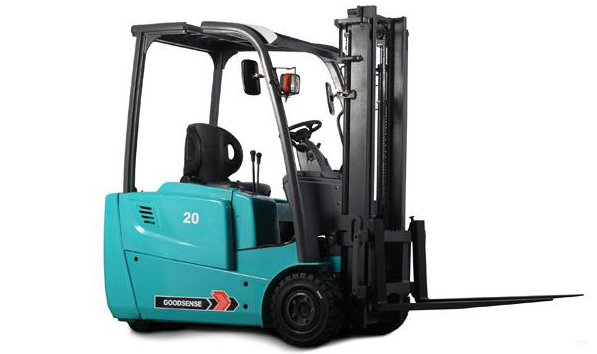

This type of electric forklift has a 3-wheel structure with a tight turning radius, suitable for material handling in the tigntness of space.
Steering system
Its transmission system is hydraulic power steering system allows for quicker and more stable steering.

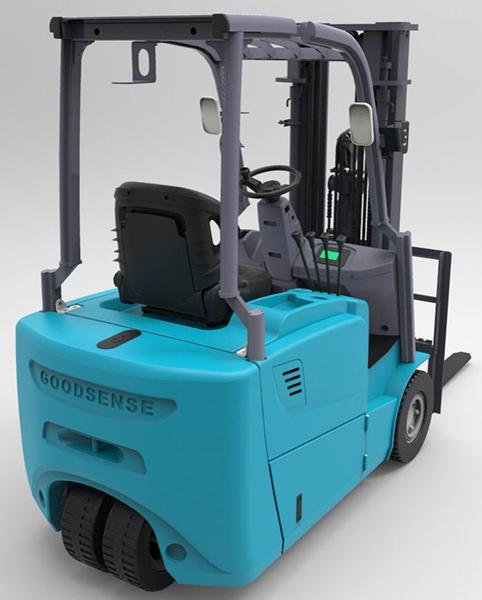

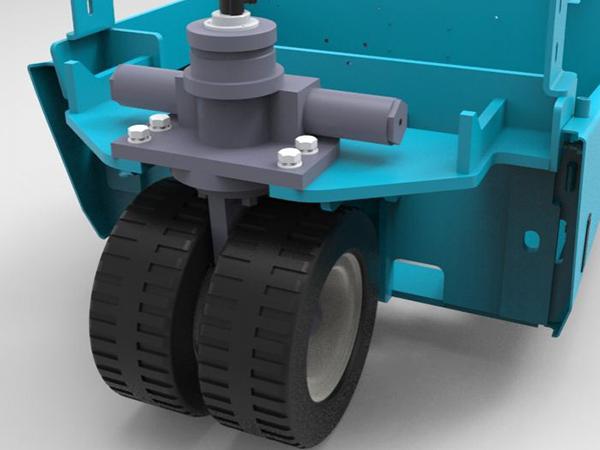

A dual steer wheel increases movement stability on the rear and allows for 90° turning.
Accessories

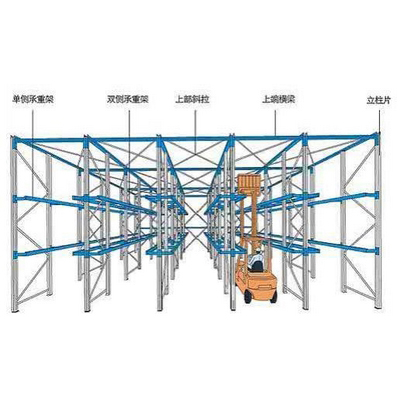

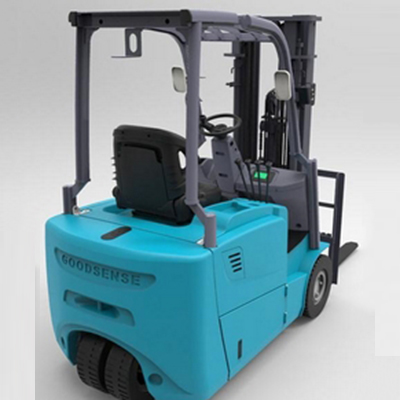

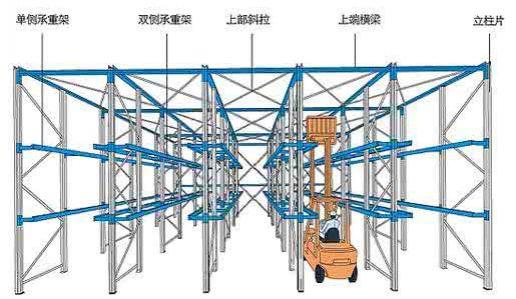

Narrow overhead guard is suitable for pallet flow racking （drive in rack）aisles with high storage density.
Narrow overhead guard is suitable for pallet flow racking （drive in rack）aisles with high storage density.

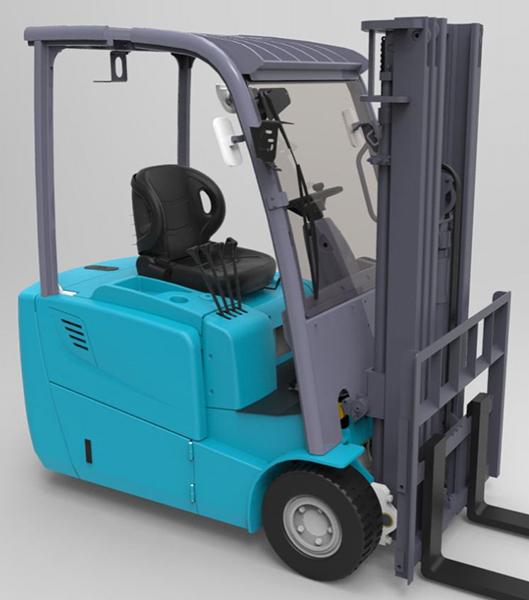

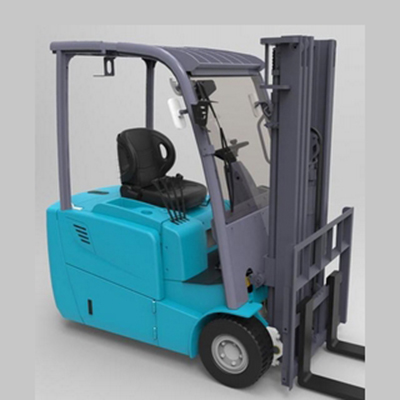

Front Window Overhead Guard gurantees visibility in rainy days.

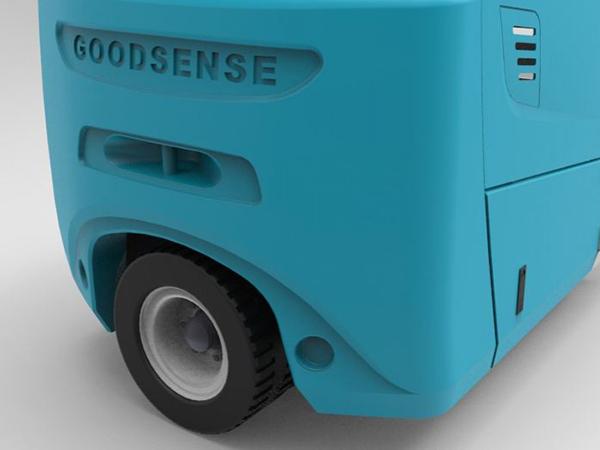

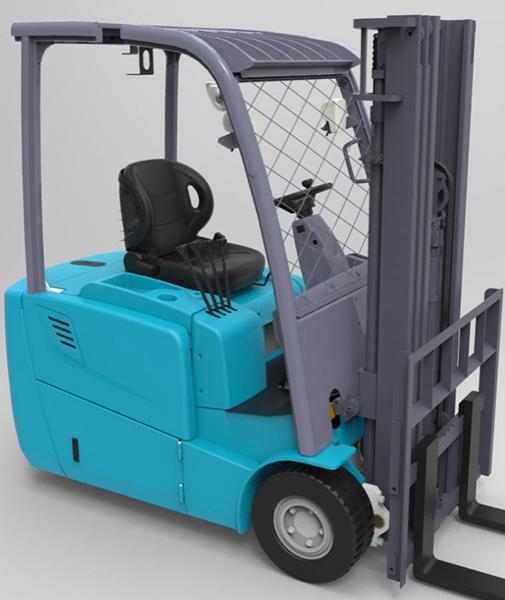

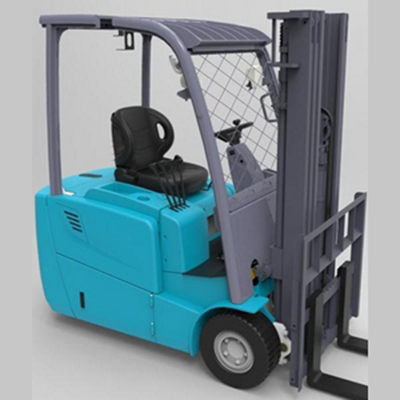

Counter Weight Net Overhead Guard protects an operator from falling loads.
Cabin

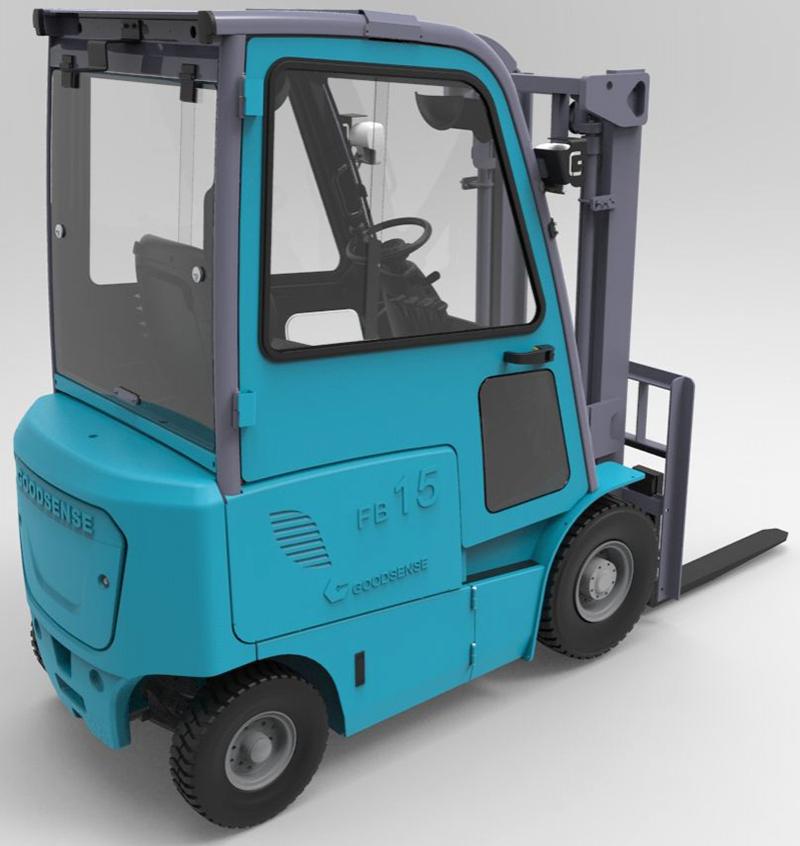

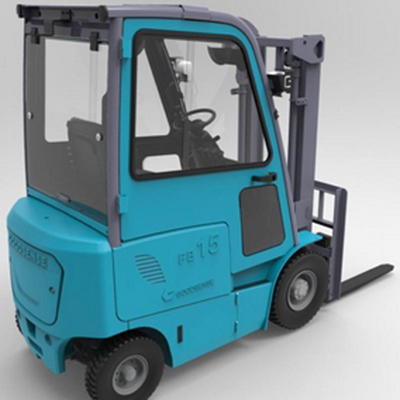

Closed cabin equipped with fan heater can protect operaters from low temperature, providing them comfortable driving environment.

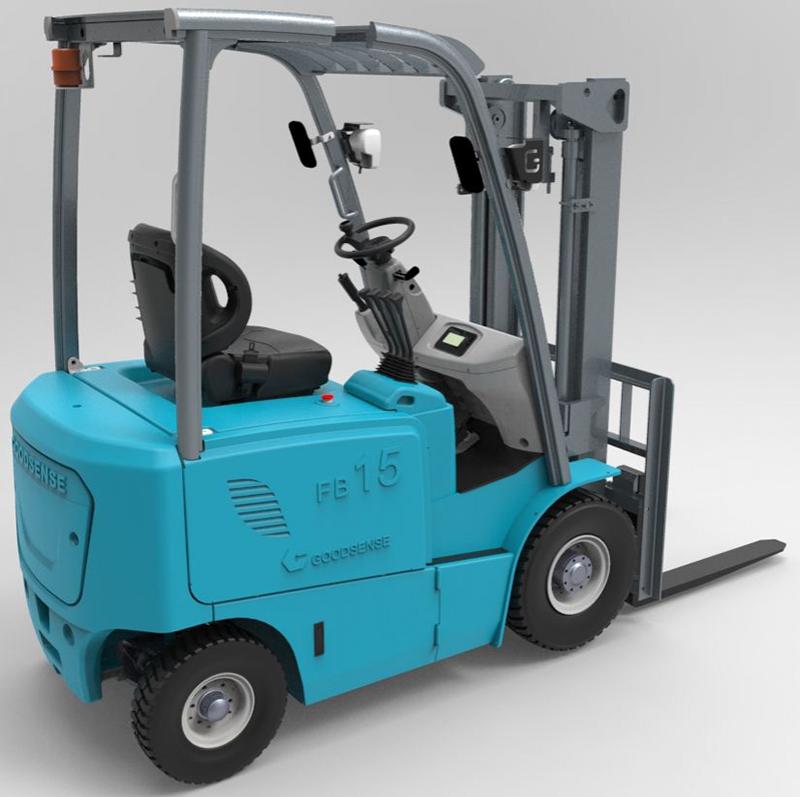

Cold Storage Forklift (1.5-3.5) Cold Storage Forklifts are equipped with motors, contractors and controllers with IP54, IP66 and IP65 respectively. Counter Weight Net Overhead Guard in Cold Storage Forklift can prevent falling loads for greater safety.

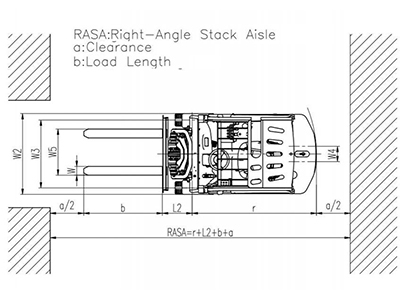

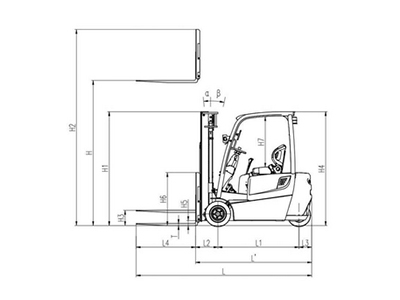

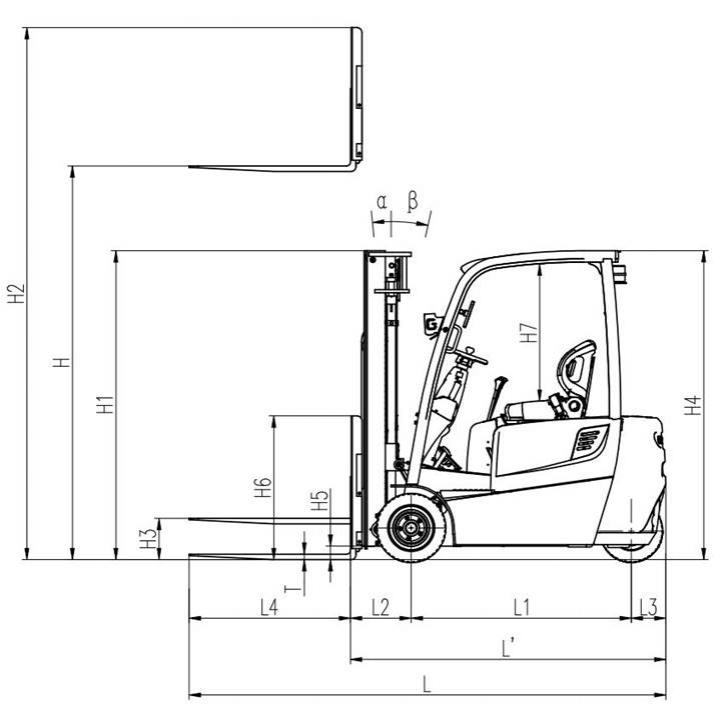

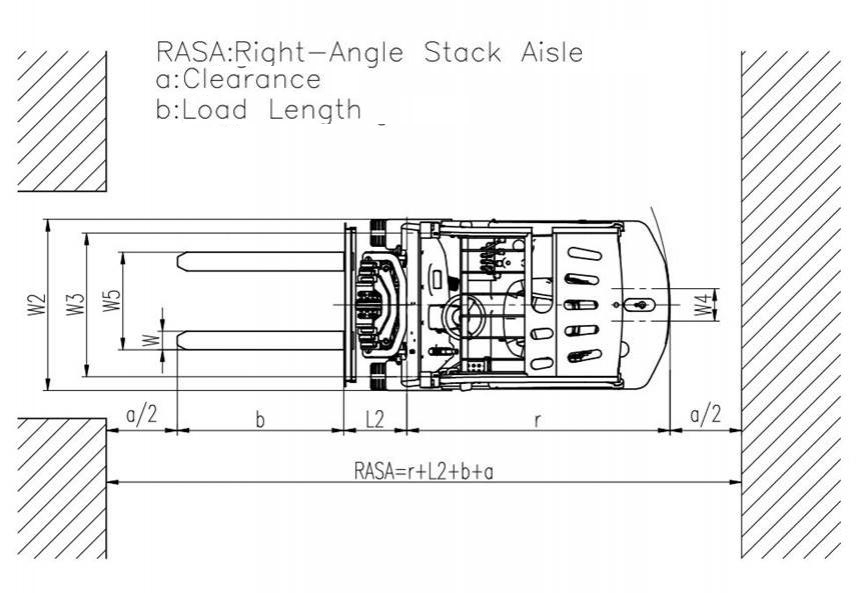

Contour
Technical Parameters
Model
FB16S-C2
FB18S-C2
FB20S-C2
General
Power Type
Battery
Load Capacity
kg
1600
1800
2000
Load Centre
mm
500
Service Weight
kg
3420
3520
3760
Chassis
Tyre type
Solid Tyre
Number of wheels x = driven wheels (front/rear)
2X/2
Front Tyre
18×7-8
Rear Tyre
16×6-8
Track width, front
mm
924
Track width, rear
208
Wheelbase
1460
Dimensions
Lift Height
3000
Fork Size
L×W×T
920×120×35
920×120×35
1070×120×40
Mast Tilt Angle
F/R
5/7
Mast Lowered Height
mm
2010
Mast Extended Height(with backrest)
3940
Width over forks(outside)
240-970
Length to face of fork(Without fork/With fork)
2100/3020
2100/3020
2100/3170
Overall Width
1100
Overhead Guard Height
2055
Assist Grip Height
990
Front Overhang
410
Min. Turning Radius
1690
Ground Clearance (Bottom of mast)
90
Min. Aisle width
2300
Min. Stacking Aisle width
3400
Performance
Max. Travel Speed(Full load/Empty load)
km/h
13/14
Max. Lifting Speed(Full load/Empty load)
mm/s
340/400
320/400
300/400
Max. Lowering Speed（Full load/Empty load）
≤600/≥300
Max.Gradeability(Full load)
%
15
Battery
Battery (Voltage /capacity)
V/Ah
48/490
48/490
48/560
Battery Size
L×W×T
mm
970×530×685
Engine power
Travel(Drive motor)
Kw
4.5×2
Lifting(Lift motor)
8.6
Type of drive control
CURTIS AC
