200t Electric Tow Tractor
200t Electric Tow Tractor

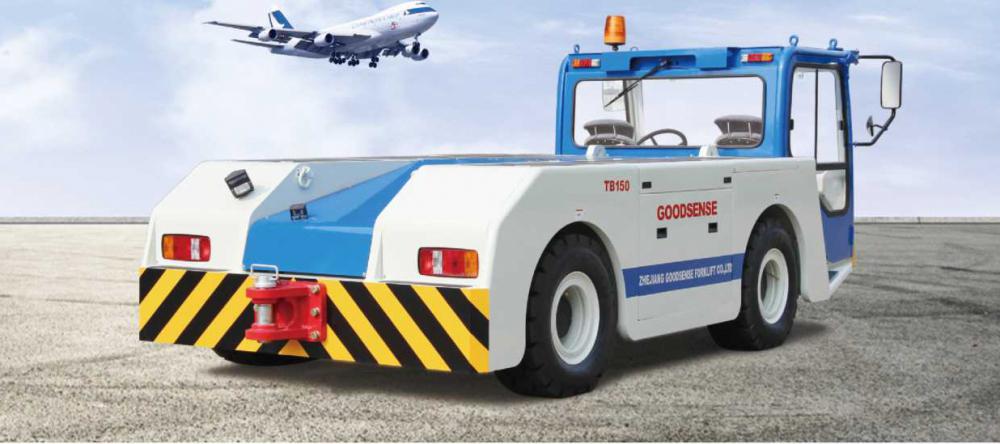

200t Electric tow tractor is designed for towing medium and small planes. It can carry any plane lighter than B767.

200t Electric tow tractor is battery powered, energy-saving and environmentally-friendly. Four-wheel hydraulic power steering with 4 types of steering mode and small turning radius is easy to operate. 4WD system can help maximize towing capacity in any conditions. The tractor uses dual-circuit hydraulic brake and o il-immersed wet disc brakes which ensure safety in any environment.

Interior environment in cabin is safe and comfortable and simple cables are convenient for repair. LCD instrument displays large amounts of imformation like mileage. Backup camera guarantees safety.

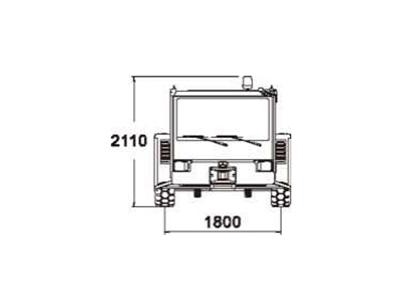

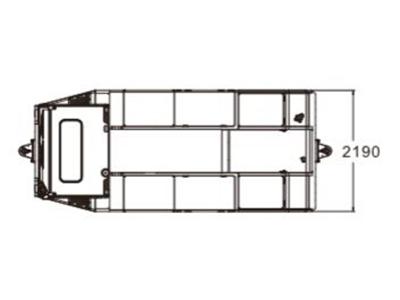

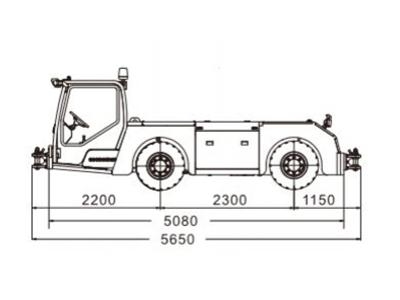

Contour
  • Contour
  • Contour
  • Contour
Technical Parameters
Model   TB150
Power Type   Battery
Rated Traction kg 200000
Service Weight kg 15500
Overall Length mm 5650/5080
Overall Width mm 2190
Height mm 2110
Wheelbase mm 2300
Front Overhang mm 2200
Rear Overhang mm 1150
Wheel Tread (FIR) mm 1800/1800
Towing Couplers Height (F/R) mm 490/440
Ground Clearance mm 220
Turning Radius mm 5000/3500
Travel Speed (No load) km/h 20
Front Axle Load kg 7950
Rear Axle Load kg 7550
Max Drawbar Pull kN 110
Max Drawbar Pull @ 6km/h kN 17
Mileage km 70
Consumption Wh/km 1200
Rated Output kW/r/min 30/1650
Rated Torque N • m 174
Rated Current A 515
Rated Voltage V 80
Motor Rating   S2 60mln
Type   Lead-acid Battery
Voltage/Capacity V/Ah 80/1100
Working Voltage V 80
Max Working Current A 750

GOODSENSE is a company designs and manufactures forklifts and other material handling equipment. Our warehouse equipment portfolio comprising counterbalance forklifts, tow tractors, reach trucks, sideloaders etc. are built on the purpose of helping solve your material handling challenges related to warehousing and storage works. We carry a full line of testing equipment to ensure high quality material handling systems while improving facility safety. At GOODSENSE, we offer suitable and compliant material handling solutions to help you implement your warehousing tasks.
