48t 4WD Internal Combustion Tow Tractor

48t 4WD internal combustion tow tractor’ drive wheels carry the whole weight of the body. This design adds skid resistance to wheels as well as increasing steering stability.

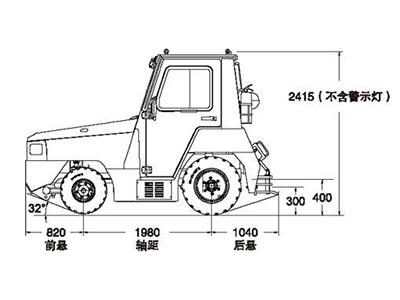

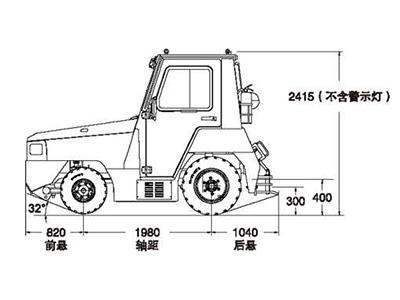

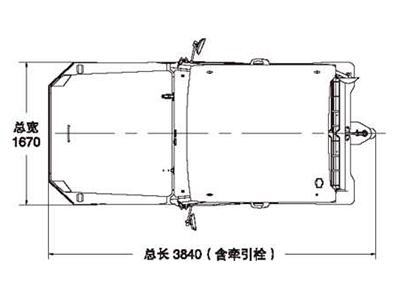

Contour

•

•

Technical Parameters

Model		TD45
Power Type		Diesel
Rated Traction Weight	kg	48000
Service Weight	kg	5800
Overall Width	mm	1670
Height	mm	2415
Wheelbase	mm	1980
Front Overhang	mm	820
Rear Overhang	mm	1040
Wheel Tread (F/R)	mm	1280/1260
Front Tire		27x10.5-15-14PR
Rear Tire		14-17.5-14PR
Towing Coupler Height (On/Under)	mm	400/300
Ground Clearance	mm	200
Turning Radius	mm	3600
Travel (Unloaded)	km/h	28
Front Axle Load	kg	1980
Rear Axle Load	kg	3970
Max Drawbar Pull	kN	45
Max. Gradeability	%	45
Engine Model		KDI2504TCR
Rated Torque	kW/r/min	55.4/2600
Rated Speed	N Tn/r/min	300/1500
Rated Consumption	g/kW . h	247
Model		4WD35
Type		Hydraulic Power
Number of gears(F/R)		2/1
Operating Type		Automatic
