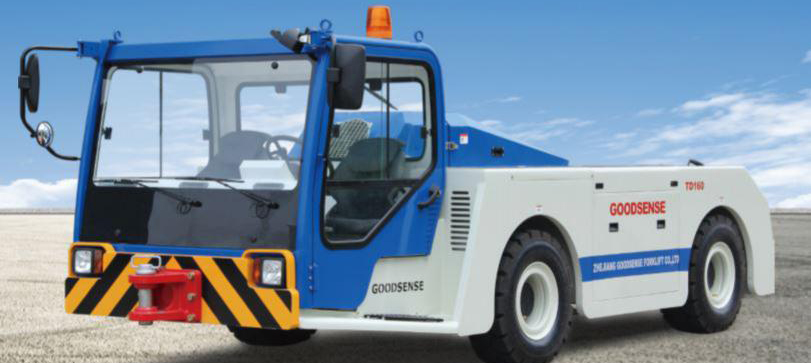

250t Internal Combustion Tow Tractor

200t internal combustion tow tractor is designed for towing medium and small planes. It can carry any plane lighter than B767.

Four-wheel hydraulic power steering with 4 types of steering mode and small turning radius is easy to operate. 4WD system can help maximize towing capacity in any conditions. Simple cables are convenient for repair. LCD instrument displays large amounts of imformation like mileage. Backup camera guarantees safety.

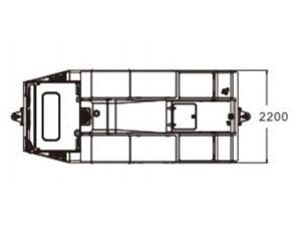

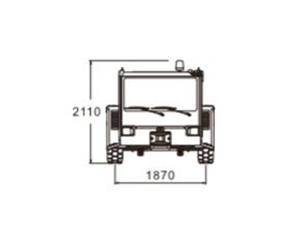

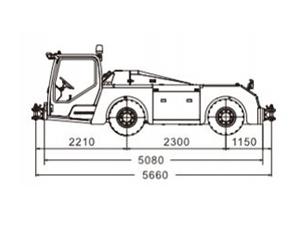

Contour

•

•

•

Technical Parameters

Model		TD160
Power Type		Diesel
Rated Traction	kg	250000
Service Weight	kg	16500
Overall Length	mm	5660/5080
Overall Width	mm	2200
Height	mm	2110
Wheelbase	mm	2300
Front Overhang	mm	2210
Rear Overhang	mm	1150
Wheel Tread (F/R)	mm	1870/1870
Towing Couplers Height (F/R)	mm	430/430
Ground Clearance	mm	230
Turning Radius	mm	5000/3500
Travel Speed (No load)	km/h	23
Front Axle Load	kg	8250
Rear Axle Load	kg	8250
Max Drawbar Pull	kN	120
Max Drawbar Pull at 6km/h	kN	25
Model		QSB4.5-C110
Manufacture		CUMMINS
Rated Output	kW/r/min	82/2200
Rated Torque	N • m/r/min	488/1500
No. of Cylinder		4
Bore x Stroke	mm	107x124
Fuel Consumption	g/kW/h	175
Emission Stage		EU Ⅲ
Type		Lead-acid Battery
Voltage/Capacity	V/Ah	24/240
Model		DANAT12000
Stage	FWD/RVS	4/3
