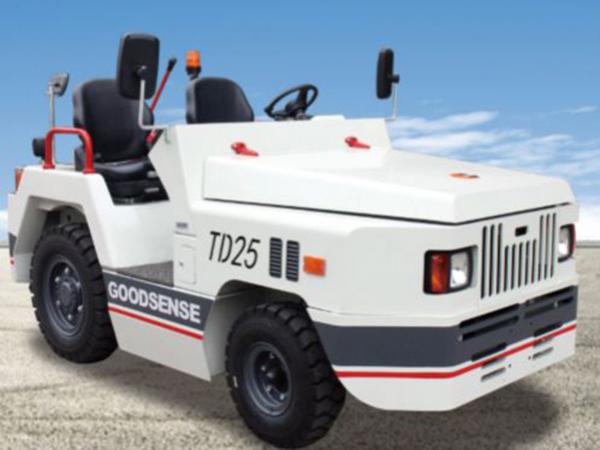

32t/38t Internal Combustion Tow Tractor

32t/38t Internal Combustion Tow Tractor is characterised by 2WD. This small type of tractor can be used for nealy all towing operations.

Technical Parameters

Model		TD25-Y2	TD30-H1
Power Type		Diesel
Rated Traction	kg	32000	38000
Service Weight	kg	4100	4300
Overall Length	mm	3200	3190
Overall Width	mm	1440
Height	mm	1450	1998/1450
Wheelbase	mm	1600
Front Overhang	mm	700
Rear Overhang	mm	900	890
Wheel Tread (F/R)	mm	1200/1190
Front Tire		6.50-10-1 OPR
Rear Tire		7.00-15-12PR
Towing Coupler Height (On/Under)	mm	400/304.8	405/304.8
Ground Clearance	mm	150
Turning Radius	mm	3250	3250
Travel (Loaded/Unloaded)	km/h	12/29	12/30
Front Axle Load	kg	1350	1300
Rear Axle Load	kg	2750	3000
Max Drawbar Pull	kN	25	30
Max. Gradeability	%	35
Braking Distance (Loaded/Unloaded)	m	4.1/6.6	3/6.6
Engine Model		YANMAR4TNE98	4H50TIC
Rated Torque	kW/r/min	43/2300	51.3/2600
Rated Speed	N • m/r/min	177.6-196.3/1700	200/2600
Rated Consumption	g/kW • h	3319	240
Model		Okamura	Graziano
Type		Hydraulic
Number of gears(F/R)		2/1	2/2
Operating Type		Automatic
